Product Details:
|
Thickness: | 0.1 To 6 Mm | Width: | 10 To 400 Mm |
---|---|---|---|
Delivery Condition: | Annealed Or Annealed And Skin Passed; Cold Rolled(+CR); Spheroidized Carbides(+AC) | Surface Condition: | Bright |
Steel Grade: | S55C-CSP | Form: | Steel Coils Strips |
Standard: | JIS G4802 S55C-CSP | ||
Highlight: | Cold Rolled Spring Steel Strip 6mm,S55C-CSP Cold Rolled Spring Steel Strip,annealed spring steel |

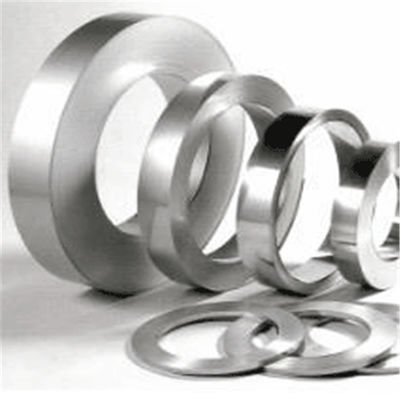

JIS G4802 S55C-CSP Cold Rolled Narrow Spring Steel Strip
Grade : S55C-CSP Classification: Structural steel Standards: JIS G 4802 : Cold-rolled steel strip for springs
Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
S55C-CSP Cold Rolled Spring Steel Strip Chemical composition
name | number | C | Si | Mn | P max. | S max. | Cr | Mo max. | V | Ni |
C55S | 1.1204 | 0,52 to 0,60 | 0,15 to 0,35 | 0,60 to 0,90 | 0,025 | 0,025 | max. 0,40 | 0,10 | max. 0,40 |
S55C-CSP Cold Rolled Spring Steel Strip Mechanical properties
Steel designation | delivery condition | ||||||||
annealed (+A) or annealed and skin passed (+LC) | cold rolled (+CR) | quenched and tempered (+QT) | |||||||
name | number | Proof strength max. Mpa | Tensile strength max. Mpa | Elongation % min. | HV max. | Tensile strength max. Mpa | HV max. | Tensile strength Mpa | HV |
S55C-CSP | 1.1204 | 480 | 600 | 17 | 185 | 1070 | 300 | 1 100 to 1 700 | 340 to 520 |
S55C-CSP Cold Rolled Spring Steel Strip Delivery condition
Cold rolled narrow steel strip covered by JIS G4802 shall be supplied in one of the following delivery conditions:
1 cold rolled and annealed or annealed and skin passed(+A or +LC);
2 cold rolled(+CR);
3 spheroidized carbides(+AC)
We also can supply quenched and tempered(+QT).
S55C-CSP Cold Rolled Spring Steel Strip Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
S55C-CSP Cold Rolled Spring Steel Strip Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
c) the number of the dimensional standard ;
d) the designation of the product form (cold rolled narrow strip);
e) the delivery condition
f) steel name or steel number
g) the number of this European Standard including the number of the relevant part;
h) if required, the type of inspection document in accordance with EN 10204.
S55C-CSP Cold Rolled Spring Steel Strip Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
Equivalent Materials
DIN 1.0535DIN C55AFNOR C54AFNOR C55AFNOR AF70BS 070M55BS En9BS En43ABS C55BS 080M50UNI C55SS 1655AISI 1055SAE 1055JIS S55CMEN C55EN 1.0535ISO C55ISO CS55GOST 55GB/T 55GB/T U20552ASTM 1055UNS G10550IS 55C8IS C55Mn75DIN 1.1203DIN Ck55DIN C55EAFNOR XC55AFNOR XC54AFNOR XC50AFNOR C55RRAFNOR C55EAFNOR XC55H1BS C55EUNI C50UNE C55KJIS S55C-CSPEN C55EEN 1.1203ISO C55EISO C55E4ISO S55CGB 55GB U20552GB/T ZG55GB/T C23464GB/T ZG340-640GB/T SM55GB/T T10550DIN 1.1219DIN Cf54JIS C56E2EN 1.1219ISO C56E2IS 55C6
We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.
S55C-CSP spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.
S55C-CSP Cold Rolled Spring Steel Strip Inspection and testing
verification of the dimensions
visual examination of the surface quality
Chemical analysis
Extent of testing
Tensile and bending tests
Tolerances on shape
