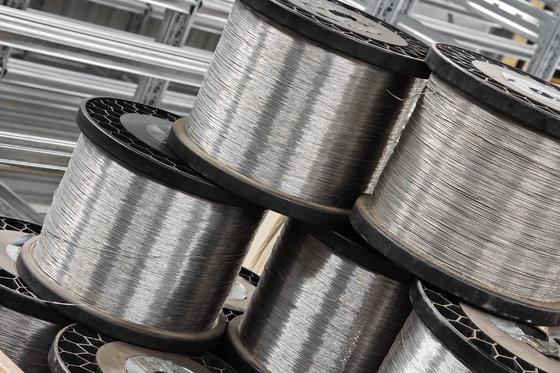

Hard Drawn Galvanized Wire

Hard Drawn Galvanized Wire
Hard Drawn Galvanized Wire

Large Image :  Hard Drawn Galvanized Wire

Product Details:

Hard Drawn Galvanized Wire

Description

Hard Drawn Galvanized Steel Wire



Our galvanized wires are manufactured by using highly advanced coating and drawing technology to apply for spring and forming process uses. We provide superior wires on processing productivity, corrosion protection and bright surface, which will contribute to customer's cost reduction in post-plating process.



Galvanized Hard drawn steel MB wire has the standard specification of ASTM A764 for metallic coated carbon steel wire, coated at size and drawn to size for mechanical springs.



Characteristics

  • More economical than stainless steel
  • Excellent corrosion resistance
  • Excellent workability
  • Cost performance (Post-plating omitted)
  • Excellent fatigue resistance (hydrogen embrittlement free)
  • Ecology (chromate free)



Application

  • Bathroom parts
  • Variety of Spring
  • Forming Wire
  • Outer Wire etc. for control cable



Chemical Composition (%) (ASTM A764 Class I & II)

Element Composition
Carbon ( C ) 0.45% - 0.85%
Manganese (Mn) 0.30% - 1.30%
Phosphorus (P) 0.04% Max
Sulfur (Si) 0.05% Max.
Silicon (Cu) 0.15% - 0.35%



Finish 1 (Drawn to Size Metallic Coated), Regular or Class 1 Coating

DIA. CLASS I CLASS II
T/S (ksi) T/S (ksi)
(Inch) MIN MAX MIN MAX
0.032 253 306 292 347
0.035 248 301 287 342
0.041 242 293 279 332
0.048 236 286 273 325
0.054 231 279 266 316
0.062 225 272 259 308
0.072 220 266 254 301
0.08 216 261 249 296
0.092 209 253 241 287
0.106 205 248 237 281
0.12 200 241 230 273
0.135 196 237 226 269
0.148 193 234 223 266



Finish 2 (Metallic Coated at Size), Regular, Class 1 or Class 3 Coating

DIA. CLASS I CLASS II
T/S (ksi) T/S (ksi)
(INCH) MIN MAX MIN MAX
0.062 213 272 232 291
0.072 209 266 227 284
0.08 204 261 223 280
0.092 198 253 216 271
0.106 194 248 212 266
0.12 189 241 206 258
0.135 185 237 202 254
0.148 183 234 200 251
