Product Details:
|
Thickness: | 0.1 To 6 Mm | Width: | 10 To 400 Mm |
---|---|---|---|
Delivery Condition: | Annealed Or Annealed And Skin Passed(+A Or +LC); Cold Rolled(+CR); Spheroidized Carbides(+AC) | Surface Condition: | Bright |
Steel Grade: | C85S | Steel Number: | 1.1269 |
Form: | Steel Coils Strips | Standard: | EN BS 10132-4 C85S 1.1269 |
High Light: | Annealed Thin Stainless Steel Strips,C85S Thin Stainless Steel Strips,1.1269 steel |

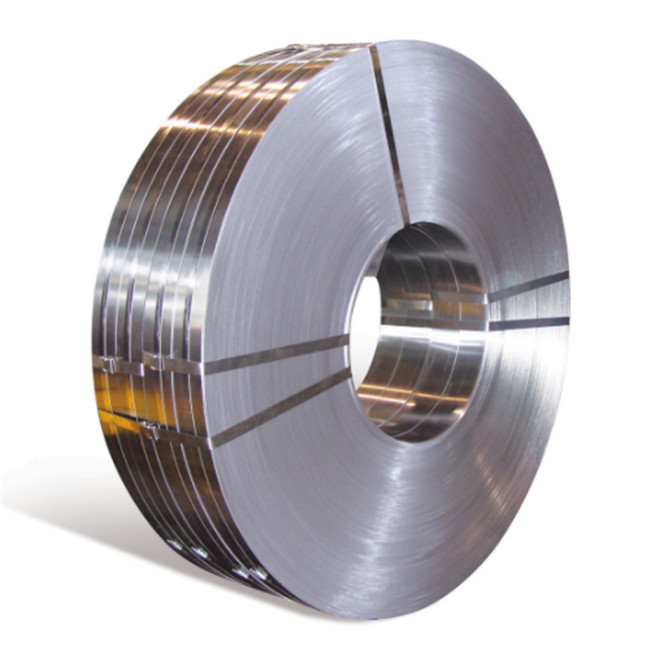

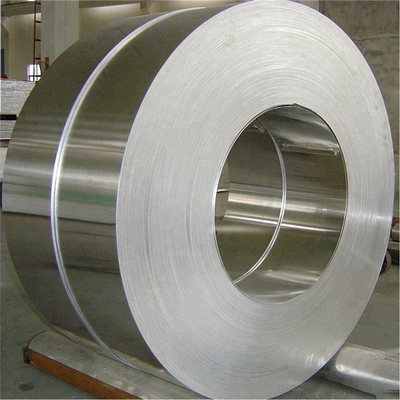

C85S 1.1269 Cold Rolled Narrow Spring Steel Strip
Grade : C85S Number: 1.1269
Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
C85S 1.1269 Cold Rolled Spring Steel Strip Chemical composition
name | number | C | Si | Mn | P max. | S max. | Cr | Mo max. | Ni |
C85S | 1.1269 | 0,80 to 0,90 | 0,15 to 0,35 | 0,40 to 0,70 | 0,025 | 0,025 | max. 0,40 | 0,10 | max. 0,40 |
C85S 1.1269 Cold Rolled Spring Steel Strip Mechanical properties
Steel designation | delivery condition | ||||||||
annealed (+A) or annealed and skin passed (+LC) | cold rolled (+CR) | quenched and tempered (+QT) | |||||||
name | number | Proof strength max. Mpa | Tensile strength max. Mpa | Elongation % min. | HV max. | Tensile strength max. Mpa | HV max. | Tensile strength Mpa | HV |
C85S | 1.1269 | 535 | 670 | 15 | 210 | 1190 | 325 | 1 200 to 2 000 | 370 to 600 |
C85S 1.1269 Cold Rolled Spring Steel Strip Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:
1 cold rolled and annealed or annealed and skin passed(+A or +LC);
2 cold rolled(+CR);
3 spheroidized carbides(+AC)
We also can supply quenched and tempered(+QT).
C85S 1.1269 Cold Rolled Spring Steel Strip Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
C85S 1.1269 Cold Rolled Spring Steel Strip Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
c) the number of the dimensional standard (EN 10140);
d) the designation of the product form (cold rolled narrow strip);
e) the delivery condition
f) steel name or steel number
g) the number of this European Standard including the number of the relevant part;
h) if required, the type of inspection document in accordance with EN 10204.
C85S 1.1269 Cold Rolled Spring Steel Strip Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
Equivalent Materials
GB 85GB U20852IS 85C6IS 7JIS SK85-CSPGOST 85GOST 85AASTM A684 Grade 1086AISI 1086ASTM G10860DIN Ck85DIN 1.1269DIN C85SAFNOR C85SAFNOR XC90AFNOR C90RRBS C85SBS CS80BS 80HSBS 80CSSAE 1086JIS SWRH82AEN 1.1269ISO C85SGB/T 85GB/T U20852UNS G10860
The steel C85S is used as cold rolled strip for springs and special applications in thicknesses of up to 6 mm and as tempered cold strip in thicknesses from 0.30 to 3.00 mm. The cold-rolled steel strip for springs possess a very high precision of measurements and very good state of the surface.
cold-rolled spring steel strips are gaining popularity in various industries. They are increasingly being implemented in engineering projects, through a fairly large number of small component manufacturers, parts and machine components.By making the right choice to buy steel strips, we reduce the amount of waste produced, thereby saving time and space. With a constant focus on the needs and requirements of our customers, we have created a unique offer.
C85S 1.1269 spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.
C85S, 1.1269, AISI 1086 specification and application : C85S is non-alloyed carbon structural steel with low hardening capacity for oil hardening for low-duty, periodically operating springs, springs and spring elements, immune to the temper brittleness. It is characterized by its high hardness and abrasion resistance, while maintaining high strength. It is used for flat and spiral springs, machine parts or saws of all kinds for cutting.
C85S 1.1269 Cold Rolled Spring Steel Strip Inspection and testing
verification of the dimensions
visual examination of the surface quality
Chemical analysis
Extent of testing
Tensile and bending tests
Tolerances on shape
Hardened and Tempered Steel Strip (also known as hardened and tempered High carbon steel strip or, hardened and tempered carbon spring steel strip) is the basic raw material from which many different components are made, substantially being spring-type applications ranging from clutch plate segments to washers, retractor springs and even to tree springs in riding saddles and traditional clock springs. These strip products are a specialty of the Company and considerable plant development has taken place in recent years to facilitate a very wide range of dimensions, mechanical properties and coil weights. Hardened and Tempered Steel Strip gauges of between 0.10mm and 2.00mm can be processed and, depending on the appropriate combination to suit the process equipment, strip widths of between 4.76mm to 240mm are produced. The facilities also allow up to 2000kg coils to be produced though most are well below this, being governed by a very approximate relationship of 100kg per 25mm of width.
