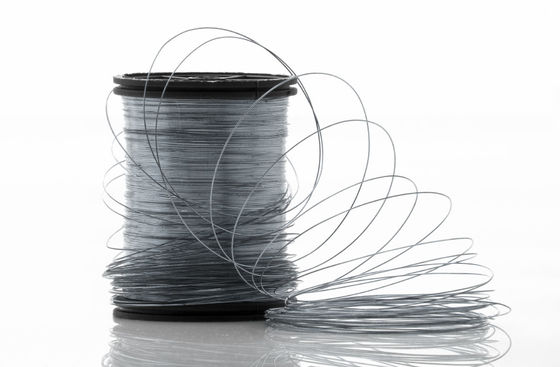

Product Details:
|
| Material: | Nickel Alloy | Application: | Spring |
|---|
A Nickel-Copper alloy with high strength and excellent corrosion resistance in a range of acidic and alkaline environments and suitable for reducing conditions. It also has good ductility and thermal conductivity. Used in a variety of applications, Monel 400 has excellent resistance to seawater, and can also be used in hydrochloric and hydrofluoric acids.
Monel 400 is also known as Phyweld 400 and Nicorros LC.
Diameter: 0.1 - 40mm
Shape: round, square, flat, special shaped
Marine engineering
Chemical processing
Hydro-carbon processing
Heat exchangers
Valves
Pumps
W.Nr 2.4361
W.Nr 2.4360
UNS N04400
AWS 040
AMS 4730
ASTM B164
BS 3075 NA 13
BS 3076 NA 13
DTD 204B
ISO 15156-3
(NACE MR 0175)
QQ-N-281
| Element | Min % | Max % |
| C | – | 0.3 |
| Si | – | 0.5 |
| Mn | – | 2 |
| S | – | 0.024 |
| Cu | 28 | 34 |
| Fe | – | 2.5 |
| Ni+Co | 63 | 70 |
| Co | – | 2 |
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
| 8.8 g/cm³ | 1350 °C | 13.9 μm/m °C (20 – 100 °C) | 65.3 kN/mm² | 173 kN/mm² |
| 0.318 lb/in³ | 2460 °F | 7.7 x 10-6 in/in °F (70 – 212 °F) | 9471 ksi | 25092 ksi |
| Condition | Type | Temperature | Time | Cooling |
| Annealed or Spring Temper | Stress Relieve | 300 – 320 °C (570 – 610 °F) |
0.5 – 1 Hr | Air |
| Annealed | Approx. tensile strength | <600 N/mm² | <87 ksi |
| Approx. operating temperature | -200 to +230 °C | -330 to +445 °F | |
| Spring Temper | Approx. tensile strength | 800 – 1100 N/mm² | 116 – 160 ksi |
| Approx. operating temperature | -200 to +230 °C | -330 to +445 °F |
