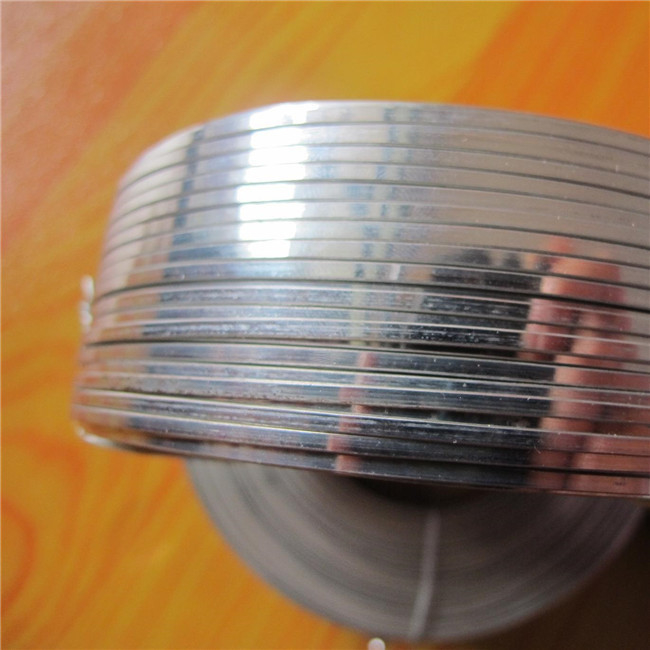

Product Details:
|
| Material: | Nickel Alloy | Application: | Spring |
|---|
Nickel-Chromium alloy being precipitation hardenable and having high creep-rupture strength at high temperatures to about 700°C (1290°F). It has higher strength than Inconel X-750 and better mechanical properties at lower temperatures than Nimonic 90 and Inconel X-750. Inconel 718 has exceptional weldability compared to the Nickel-base super alloys hardened by Aluminium and Titanium.
Diameter: 0.1 - 40mm
Shape: round, square, flat, special shaped
Inconel 718 offers the following key features:
Good creep rupture strength at high temperatures
Higher strength than Inconel X-750
Better mechanical properties at lower temperatures than Nimonic 90 & Inconel X-750
Age hardenable
High temperature dynamic applications^^
Inconel 718 is known to be suitable for the following applications:
Gas Turbines
Rocket Motors
Space Craft
Nuclear Reactors
Pumps
Oil & Gas Equipment
W.NR 2.4668
UNS N07718
AWS 013
AMS 5662
AMS 5663
AMS 5832
AMS 5962
ASTM B637
GE B5OTF14/15
GE B14H89
ISO 15156-3
(NACE MR 0175)
API 6A718
| Element | Min % | Max % |
| C | – | 0.08 |
| Mn | – | 0.35 |
| Si | – | 0.35 |
| P | – | 0.015 |
| S | – | 0.015 |
| Cr | 17 | 21 |
| Ni | 50 | 55 |
| Mo | 2.8 | 3.3 |
| Nb/Cb | 4.75 | 5.5 |
| Ti | 0.65 | 1.15 |
| Al | 0.2 | 0.8 |
| Co | – | 1 |
| Ta | – | 0.05 |
| B | – | 0.006 |
| Cu | – | 0.3 |
| Pb | – | 0.0005 |
| Bi | – | 0.00003 |
| Se | – | 0.0003 |
| Fe | bal |
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
| 8.19g/cm³ | 133 6 °C | 13.0 μm/m °C (20 – 100 °C) | 77.2 kN/mm² | 204.9 kN/mm² |
| 0.296 lb/in³ | 2437 °F | 7.2 x 10-6 in/in °F (70 – 212 °F) | 11197 ksi | 29719 ksi |
| Condition | Type | Temperature | Time | Cooling |
| No. 1 or Spring Temper | Anneal | 980 °C (1800 °F) | 1hr | Air |
| Age Harden | 720 °C (1330 °F) | 8hr | Furnace | |
| Total Age | 620 °C (1150 °F) | 18hr | Air | |
| No. 1 or Spring Temper (for ISO 15156-3 / NACE MR 0175) | Anneal | 1010 °C (1850 °F) | 2hr | Air |
| Age Harden | 790 °C (1455 °F) | 6hr | Air | |
| No. 1 Temper or Spring Temper | Age Harden | 720 °C (1330 °F) | 8hr | Furnace |
| Total Age | 620 °C (1150 °F) | 18hr | Air |
| Annealed | ||
| Approx. tensile strength | <1000 N/mm² | <145 ksi |
| No. 1 Temper | ||
| Approx. tensile strength | 1000 – 1200 N/mm² | 145 – 175 ksi |
| Spring Temper | ||
| Approx. tensile strength | 1250 – 1550 N/mm² | 180 – 225 ksi |
| No. 1 Temper + Annealed + Aged | ||
| Approx. tensile strength | 1250 – 1450 N/mm² | 181 – 210 ksi |
| Approx. operating temperature depending on load^^ and environment | -200 to +550 °C | -330 to +1020 °F |
| No. 1 Temper + Aged | ||
| Approx. tensile strength | 1520 – 1720 N/mm² | 220 – 250 ksi |
| Approx. operating temperature depending on load^^ and environment | Contact Alloy Wire Technical Dept | |
| Spring Temper + Annealed + Aged | ||
| Approx. tensile strength | 1250 – 1450 N/mm² | 181 – 210 ksi |
| Approx. operating temperature depending on load^^ and environment | -200 to +550 °C | -330 to +1020 °F |
| Spring Temper + Aged | ||
| Approx. tensile strength | 1700 – 1950 N/mm² | 247 – 283 ksi |
| Approx. operating temperature depending on load^^ and environment | Contact Alloy Wire Technical Dept | |
