Product Details:
|
| Material: | Nickel Alloy | Application: | Spring |
|---|

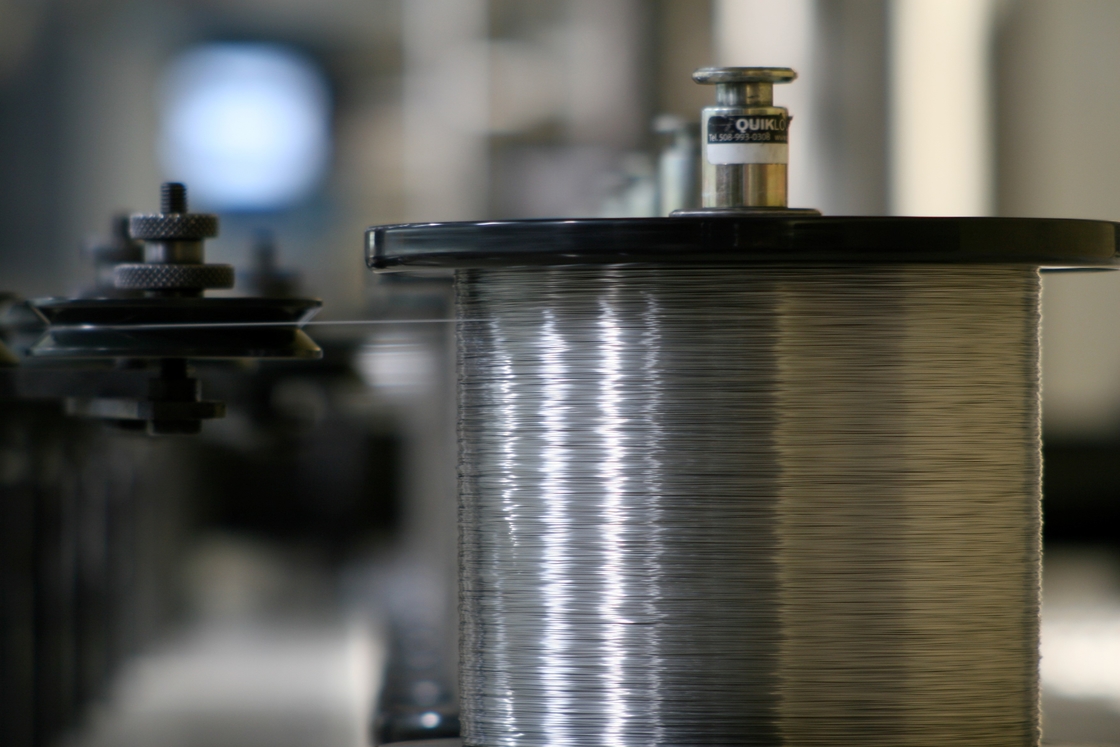

This Nickel-Copper alloy is precipitation hardenable, due to the additions of Aluminium and Titanium. It combines the corrosion resistance of Monel 400 but gives the added advantage of extra strength and hardness (as a result of its age hardening ability). Monel K500 provides corrosion resistance in several marine and chemical applications.
Monel K500 is also known as Nicorros Al.
Diameter: 0.1 - 40mm
Shape: round, square, flat, special shaped
Pump Shafts
Fasteners
Marine Propeller Shafts
Oil Well Tools
Instruments
Springs
W.Nr 2.4375
UNS N05500
AWS 041
ASTM B865
BS 3075 NA 18
BS 3076 NA 18
ISO 15156-3
(NACE MR 0175)
QQ-N-286
| Element | Min % | Max % |
| Ni | 63 | 70 |
| Co | – | 2 |
| Cu | 27 | 33 |
| Fe | – | 2 |
| Al | 2.3 | 3.2 |
| C | – | 0.25 |
| Si | – | 1 |
| Mn | – | 1.5 |
| Ti | 0.35 | 0.85 |
| S | – | 0.01 |
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
| 8.44 g/cm³ | 1350 °C | Coefficient of Expansion 13.7 μm/m °C (20 – 100 °C) |
66 kN/mm² | 179 kN/mm² |
| 0.305 lb/in³ | 2460 °F | 7.6 x 10-6 in/in °F (70 – 212 °F) | 9573 ksi | 25962 ksi |
| Condition | Type | Temperature | Time | Cooling |
| Annealed | Age Harden | 580 – 590 °C (1075 – 1095 °F) | 8 – 10 Hr | Air |
| Spring Temper | Age Harden | 530 – 540 °C (985 – 1005 °F) | 4 – 6 Hr | Air |
| Annealed | Approx. tensile strength | <850 N/mm² | <123 ksi |
| Approx. operating temperature | -100 to +260 °C | -150 to +500 °F | |
| Annealed + Aged | Approx. tensile strength | >950 N/mm² | >138 ksi |
| Approx. operating temperature | -100 to +260 °C | -150 to +500 °F | |
| Spring Temper | Approx. tensile strength | 1000 – 1300 N/mm² | 145 – 189 ksi |
| Approx. operating temperature | -100 to +260 °C | -150 to +500 °F | |
| Spring Temper + Aged | Approx. tensile strength | 1200 – 1500 N/mm² | 174 – 218 ksi |
| Approx. operating temperature | -100 to +260 °C | -150 to +500 °F |
