Product Details:
|
| Features: | Lightweight, High Strength, Corrosion Resistance, Low Thermal Expansion, Non-magnetic | Application: | Aerospace, Chemical Processing, Medical, Marine, Automotive |
|---|---|---|---|
| Grade: | Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 | Length: | Customized |
| Material: | Titanium | Packaging: | Wooden Case, Carton Box, Pallet |
| Shape: | Strip | Standard: | ASTM B265, AMS 4911, AMS 4902 |
| Surface Finish: | Polished | Surface Treatment: | Pickling, Anodizing, Sandblasting |
| Thickness: | Customized | Tolerance: | ±0.01mm |
| Width: | Customized | ||
| High Light: | Gr5 Titanium Alloy Strip,Aerospace Titanium Alloy Strip,Customized Titanium Alloy Coils |
||

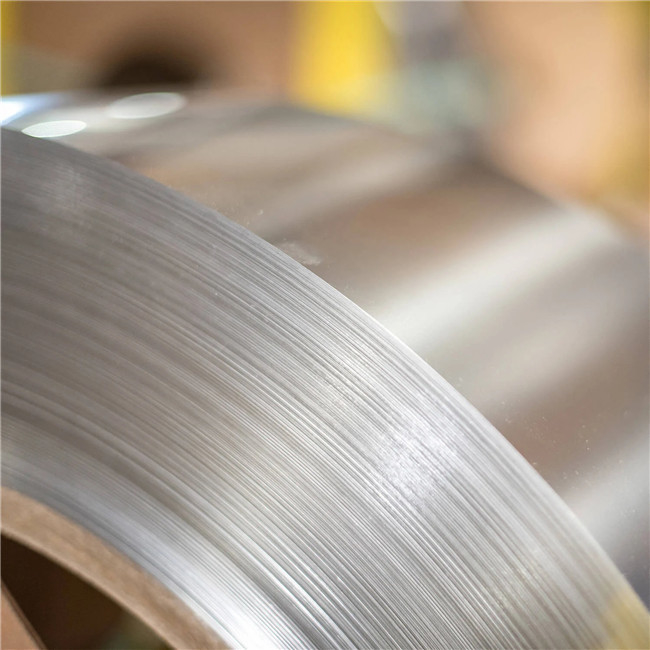

Titanium Strips And Coils
Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class, and is also the most common of all titanium alloys. The alloy is castable and is utilized "as cast" in sporting goods.
The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight, and favourable corrosion properties are required. The alloy is available as castings, wire, bar, plate, sheet, forgings, rings, and billet.
Hot and Cold Rolled Coils /Sheets
| Item | Dimension(T x W x L) |
| Slit to strips as requested width | |
| Hot Rolled Coil | (3.0~<4.75) × (1000~1500) × L |
| (4.5~12.7) × (1000~2000) × L | |
| Cold Rolled Coil | (0.1~<0.3) × (150~600) × L |
| (0.3~<2.0) × (1000~1280) × L | |
| (2.0~3.0) × (1000~1280) × L |
Chemistry Requirements: % Maximum unless given as a range.
| N | C | H | Fe | O | Al | V | Y | Ti |
| 0.05 | 0.08 | 0.125 | 0.40 | 0.2 | 5.5-6.75 | 3.5-4.5 | 0.005 | Balance |
Minimum Tensile Properties:
| Condition |
UTS ksi (Mpa) |
0.2%YS ksi (MPA) |
% El. | % RA* |
| As specified (shape) | 130 (895) | 120 (828) | 10 | 25 |
| Solution Treated and Aged | 160 (1103) | 150 (1034) | 10 | 20 |
| Castings | 130 (895) | 120 (828) | 6 | 10 |
Typical Tensile Properties:
| Condition |
UTS ksi (Mpa) |
0.2%YS ksi (MPA) |
% El. | % RA* |
| Annealed | 145 (1000) | 132 (910) | 18 | 40 |
| Solution Treated and Aged | 161 (1110) | 141 (970) | 15 | 45 |
| Castings | 145 (1000) | 130 (895) | 5 | 15 |
Note: Typical properties are not to be utilized as a requirement, but are only listed for guidance. These properties mayor may not be attainable in all circumstances.
* %Ra not required by all specifications
