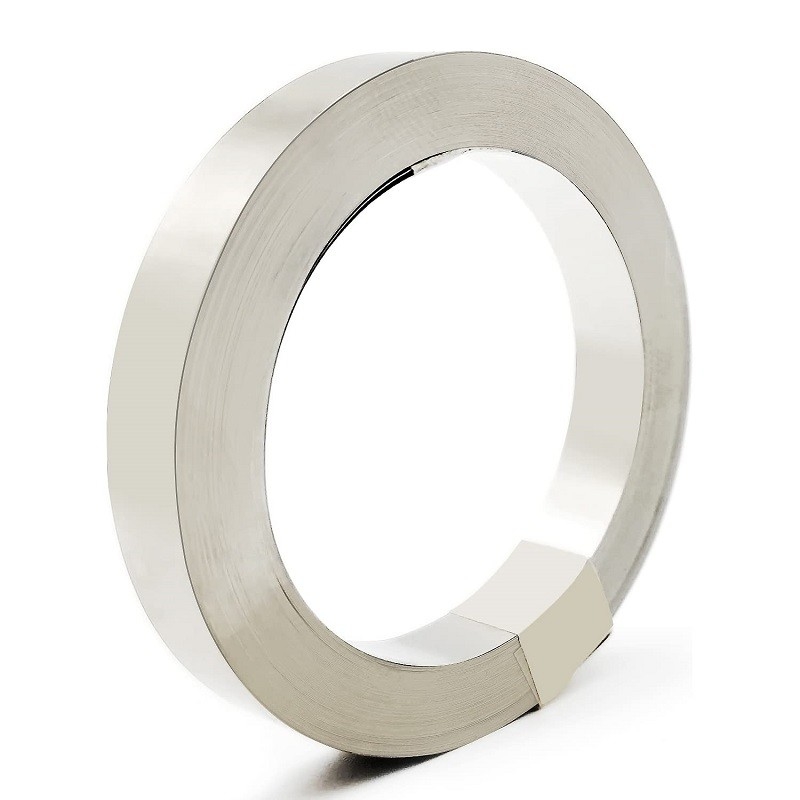

Grade 1 UNS R50250 Pure Titanium Foil

Grade 1 UNS R50250 Pure Titanium Foil
Grade 1 UNS R50250 Pure Titanium Foil

Large Image :  Grade 1 UNS R50250 Pure Titanium Foil

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO NQA 9001
Model Number: Grade 1 UNS R50250
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 40,00tons/year

Grade 1 UNS R50250 Pure Titanium Foil

Description
Color: Silver Corrosion Resistance: Excellent
Density: Low Ductility: Good
Length: Customized Malleability: Good
Material: Titanium Melting Point: 1668°C
Shape: Strip Strength: High
Surface Treatment: Polished Temperature Resistance: High
Thickness: Customized Width: Customized
High Light:

UNS R50250 Pure Titanium Foil

,

Grade1 Pure Titanium Foil

,

Customized Pure Titanium Strip

TITANIUM FOILS AND ALLOYS



Reliable titanium supplier known for outstanding quality

We Are A Metals Specialist For Both Small And Large Scale Projects



Titanium foils are the precision titanium strips. They are produced through both hot rolling and annealing processes.



The hot rolling technology enables the material to become increasingly thinner, achieving a thickness range of 0.01mm to 0.100mm and width range maximum 650mm.



These foils exhibit a bright surface and excellent performance, boasting stable characteristics and remarkable plasticity.



Rolling titanium this thin requires state-of-the-art equipment and significant experience in the industry, and we have exactly that. As an innovative leader in the production titanium foil products, we're here to engineer each order to your specs.



Chemical Component

Grade UNS C Ox N H Fe
1 R50250 0.08 0.18 0.03 0.015 0.20



Mechanical Property

Grade UNS Tensile, min Yield, min Yield, max Elongation
ksi MPa ksi MPa ksi MPa %
1 R50250 35 240 20 138 45 310 24

Our Manufacturing Process is Unparalleled

In order to ensure quality titanium foil, there needs to be consistency in the material properties and manufacturing process. Tailored especially to your end use, We knows your precision titanium foil products need repeatable rolling, slitting, annealing, and specific finishing processes.



We Engineer Titanium Surface Finishes to Minimize Tool Wear and Increase Die Performance

Our unique capabilities allow us to process the Titanium to minimize the abrasiveness of the oxide, resulting in less tool wear and resulting in longer die life for our customers.



ISO Quality Management System.

Art equipment & skilled production teams produce extreme titanium foil as thin as 0.01mm. We are skilled in critical application product development and production problem solving, ensuring availability, consistency, and quality. We are also capable of providing either annealed or tempered titanium foil as per the exact required specifications.



Titanium Foil Detection

We perform a visual inspection to check the surface quality and ensure no flaw, blackspots, and any other defects.

We also do chemical composition detection, making sure all chemical components meet demands.

Mechanical features testing, making sure all titanium foils have satisfying mechanical features before delivery.



There are hundreds of uses for titanium metal in applications ranging from E-beam shielding to drug delivery to aerospace surfaces and structures. Titanium (Ti) offers exceptional characteristics for high overall strength, biocompatibility, corrosion resistance, and workability. Lightweight and durable under harsh temperature and chemical conditions, titanium sheet and foil materials from us are available in a number of grades for various end-uses.



Customers rely on us as a thin-rolled titanium foil supplier. Ti is used in applications that demand high performance and consistent quality. These applications include fabrication of electron beam equipment for food sterilization, vulcanizing, and a variety of industrial uses; design and building of flight and aerospace vehicles; energy-related applications such as solar panels; speaker components; and medical device enclosures. Titanium’s corrosion resistance means that the material can be thinner for a given application in harsh environments compared to other materials, further reducing weight. Ti boasts the highest strength-to-weight ratio of any metallic element. Titanium’s bio-compatibility, including non-allergenic characteristics and non-toxicity to living tissue, makes it the ideal material in many medical applications.



Titanium foils are used in bio-engineering research applications where body tissues, saliva and micro organisms are kept in the titanium foils due to their excellent bio-compatibility and inert nature with living things. Another common use for titanium as a thin foil is in shavers. The windscreen is the application where you most likely can find titanium foil as a non-corporate user. Titanium foil has also been used in making of the camera shutters, a most unseen and unknown device hidden inside a camera that allows light to pass for a short period of time, for the purpose of exposing film or an electronic sensor to light to make a photo. If you are engaging in making something out of titanium in the form of foil, just remember the titanium foil is about the same thickness as a sheet of paper. You can build wind shavers, screens, wind screen, camera shutters, or what ever you can imagine.
