Product Details:
|
| Feature: | Stainless Steel | Shape: | Steel Strip |
|---|---|---|---|
| From: | Stainless Strips Coils | Classification: | Stainless Steel Strip |

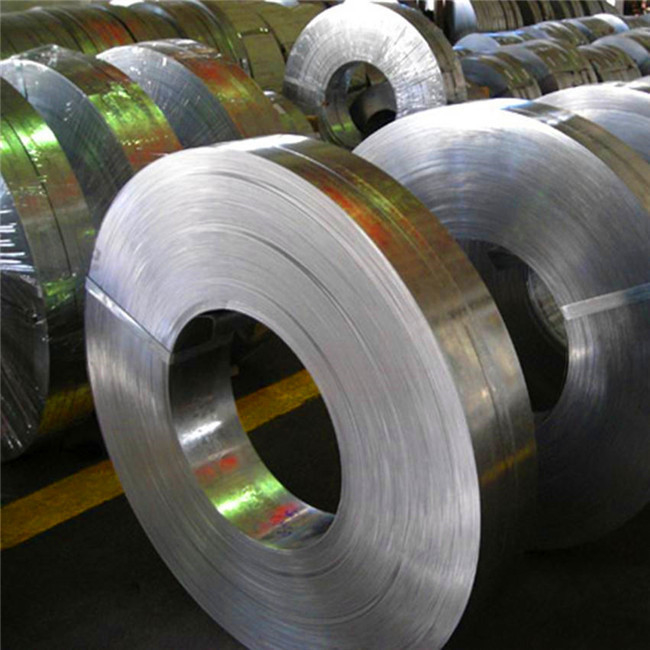

| High Light: | X2CrTi12 Cold Rolled Ferritic,1.4512 Stainless Steel Narrow Strip,AISI 409 Cold Rolled Ferritic |
||
Grade X2CrTi12 is well suited for cold forming, e.g. bending, flanging and deep drawing, and is easily weldable by all methods except gas welding. It is used for silencer and exhaust gas detoxification systems in motor vehicles. In addition, grade X2CrTi12 has sufficient resistance to internal and external corrosion and can also be used for wagons, containers and wheel housings of buses.
STAINLESS CHROMIUM-TITANIUM STEEL WITH FERRITIC STRUCTURE X2CRTI12, 1.4512, AISI 409 ACCORDING TO EN 10088-2. Ferritic steel.
| Short designation | Aisi/SAE | Material number |
| X2CrTi12 | 409 | 1.4512 |
| Proof stress Rp0,2 MPa min. | Tensile strength Rm MPa | Elongation at fracture A80 % min. |
| 220 | 280-560 | 25 |
| C | Cr | Si | Mn | P | S |
| 0.030 | 10.5-12.5 | 1.00 | 1.00 | 0.040 | 0.015 |
X2CrTi12 steel is a ferritic grade with an average of 11% chromium and 1% of Titanium in the chemical composition. Produced mostly in the form of sheets, strips and bars, it finds its application mainly in the automotive industry or in the machine industry.
Exhaust systems, small structures, car and other vehicles or machines mufflers are the most common components that are made from the above mentioned grade. None Nickel or its small content in the composition is associated with a ferritic structure, resulting in a relatively higher flue gas resistance.
Materials in the X2CrTi12 grade can work freely for extended periods of time at elevated temperatures of 500 - 600 ℃, which can be classified as heat resistant steel (bypassing standards). Unlike austenitic acid resistant steel, 1.4512 is not resistant to numerous salts, acids or bases.
1.4512, 4512, AISI 409, UNS S40900, UNS S40910, UNS S40920, UNS S40930, SAE 51409, TP409, X2CRTI12, X6CRTI12, X 2 CRTI 12, X 6 CRTI 12, X 6 CRTI 17, X6CRTI12, X6CRTI17, X6CRTI12E, 409S19, 409 S 19, LW12, LW19, X7CRTI12, X 7 CRTI 12, Z3CT12, Z 3 CT 12, F12T, X5CRTI12, X 5 CRTI 12, 00CR12TI, 022CR11TI, 06CR11TI, 0CR11TI, F1-25H, F1-45, F1-60, UNS S 40900,
