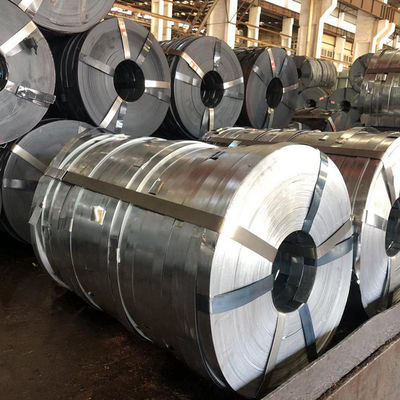

DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring

DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring
DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring
DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring

Large Image :  DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: 1.3505
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

DIN EN 1.3505 Cold Rolled Thin Bearing Steel Strip For Spring

Description
Thickness: 0.1 To 6 Mm Width: 10 To 400 Mm
Delivery Condition: Cold Rolled + Hardened + Tempered Steel Grade: 1.3505
Standard: DIN EN ISO Surface Condition: Bright, Grey-blue, Polished, Polished And Colour-tempered
Form: Steel Coils Strips Delivery Condition 2: Cold Rolled + Annealed G
High Light:

EN 1.3505 Bearing Steel Strip

,

DIN Bright Annealed Steel Strip

,

Cold Rolled Bearing Steel Strip

ASTM SAE 1.3505 Cold Rolled Thin Bearing Steel Strip for Spring



Introduction

1.3505 bearing steel is a high carbon, chromium containing low alloy steel that is through hardening and noted in particular for use as SPRING.



Advantages

  • Superior hardness, 60-67 on Rockwell hardness scale (Rc) at room temperature
  • High carbon chrome alloy steel
  • Operates continually at temperatures up to 120°C
  • Used to produce precision ball bearings and roller bearings
  • Cost-effective
  • Long working life



Applications

1.3505 bearing steel is primarily used for the manufacture of aircraft bearings and other highly stressed parts. It has the good rolling fatigue strength required at operating temperatures less than 400ºF (200ºC). The grade is preferably vacuum arc re-melted to give optimum performance.



Quality Standard

JIS G4805 1999 high carbon chromium bearing steels

DIN 17230-1980 Ball and Roller Bearing Steels

ASTM A29 Standard Specification Steel Bars, Carbon and Alloy, Hot-Wrought, General Requirements



All Grades Comparison

ASTM Material No. EN JIS
52100/L3 1.3505 100Cr6 SUJ2



Chemical Composition(%)

Steel Grade C Si Mn P S Cr Ni Cu O2
52100 0.93-1.05 0.15-0.35 0.25-0.45 0.025 max 0.015 max 1.35-1.60 0.30 max 0.30 max 0.0015 max
100Cr6 0.90-1.05 0.15-0.35 0.25-0.45 0.030 max 0.025 max 1.35-1.65 0.30 max 0.30 max /
L3 0.95-1.10 0.10-0.50 0.25-0.80 0.030 max 0.030 max 1.30-1.70 / / /
SUJ2 0.95-1.10 0.15-0.35 Max 0.50 0.025 max 0.025 max 1.30-1.60 0.25 max 0.20 max /



HEAT TREATMENT

ANNEALING: 1.3505 bearing steel is annealed at 872°C (1600°F) followed by slowly cooling to reduce cold working or machining stress.

HARDENING: 1.3505 bearing steel is hardened by cold working, or heating and quenching. It can be carburized at 913°C (1675°F) followed by quenching. It is again heated at 788°C (1450°F) followed by quenching for the second time.



Mill′s test certificate

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.



Mechanical Properties

Properties Metric Imperial
Bulk modulus (typical for steel) 140 GPa 20300 ksi
Shear modulus (typical for steel) 80 GPa 11600 ksi
Elastic modulus 190-210 GPa 27557-30458 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Hardness, Brinell
Hardness, Knoop (converted from Rockwell C hardness) 875 875
Hardness, Rockwell C (quenched in oil from 150°C tempered) 62 62
Hardness, Rockwell C (quenched in water from 150°C tempered) 64 64
Hardness, Rockwell C (quenched in oil) 64 64
Hardness, Rockwell C (quenched in water) 66 66
Hardness, Vickers (converted from Rockwell C hardness) 848 848
Machinability (spheroidized annealed and cold rolled. Based on 100 machinability for AISI 1212 steel) 40 40
