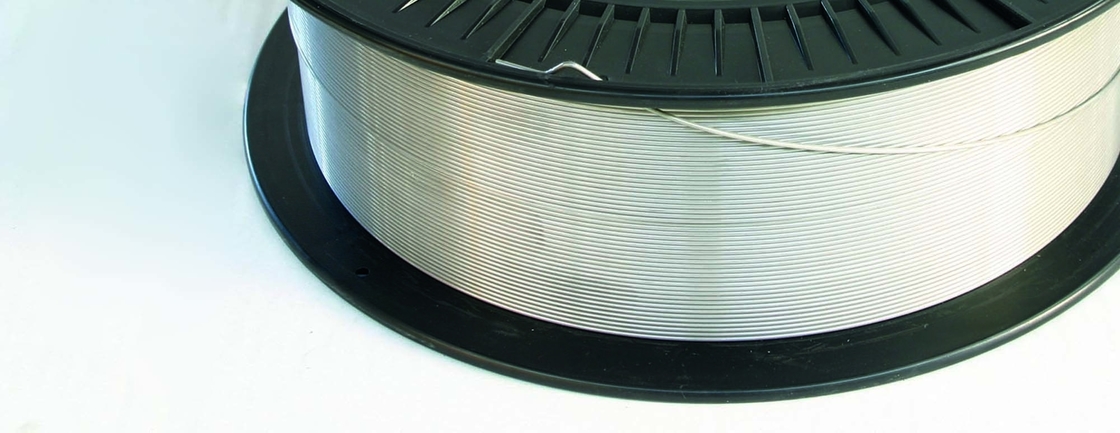

METALLIZING THERMAL SPRAY COATING WIRE
FUSHUN produces wire for metallisation, with among the lowest iron content level available in the market. Every single item is produced and identified under the ISO9001 certified quality management system, that offers the full material traceability; and thanks to its improved production technology – which includes precision layered spooling – our product is perfect for such applications, as flexible packaging, solar film and labels among others, where high quality and no impurities is required.
Product availability - Stainless steel
| AISI | EN 10088-1 | W. Nr. |
| 304 | X5CrNi 18-10 | 1.4301 |
| 308 | – | 1.4316 |
| 316 | X5CrNiMo 17-12-2 | 1.4401 |
| 410 | X12Cr 13 | 1.4006 |
| 420 | X20Cr13 | 1.4021 |
| 420 | X30Cr13 | 1.4028 |
| 420 | X39Cr13 | 1.4034 |
Product availability - Aluminium
| EN 573-3 | W. Nr. |
| 1050A (Al99.5) | 3.0259 |
| 1070 (Al99.7) | 3.0286 |
| 1080A (Al99.8) | 3.0286 |
Product availability - Nickel
| AWS A5.14 | EN ISO 18274 | W. Nr. |
| ERNiCrMo-3 | NiCr22Mo9Nb / Ni6625 | 2.4831 |
| ERNiCr-3 | NiCr20Mn3Nb / Ni6082 | 2.4806 |
| ERNi-1 | Ni 2061 / NiTi3 | 2.4155 |
Thermal spray coating wire grades and chemical composition - Stainless steel
| C | Si | Mn | P | S | Cr | Ni | Mo | Others | |
| 304G | 0.07 max | 1.00 max | 2.00 max | 0.045 max | 0.030 max | 17.50 to 19.50 | 8.00 to 10.50 | - | - |
| 308LG | 0.02 max | 1.00 max | 1.90 max | 0.025 max | 0.015 max | 19.00 to 20.80 | 10.00 to 10.80 | - | - |
| 316G | 0.07 max | 1.00 max | 2.00 max | 0.045 max | 0.030 max | 16.50 to 18.50 | 10.00 to 13.00 | 2.00 to 2.50 | - |
| 410L | 0.08 to 0.15 | 1.00 max | 1.50 max | 0.040 max | 0.030 max | 11.50 to 13.50 | 0.75 max | - | - |
| 420A | 0.16 to 0.25 | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.00 to 14.00 | - | - | - |
| 420B | 0.26 to 0.35 | 0.50 max | 0.60 max | 0.030 max | 0.030 max | 12.00 to 14.00 | 0.60 max | 0.75 max | Cu 0.75max |
| 420C | 0.36 to 0.42 | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.50 to 14.00 | - | - | - |
Thermal spray coating wire grades and chemical composition - Aluminium
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Al | Others | |
| 1050A(Al99.5) | 0.25 max | 0.40 max | 0.05 max | 0.05 max | 0.05 max | 0.07 max | 0.05 max | 99.50 min | - |
| 1070 (Al99.7) | 0.15 max | 0.15 max | 0.02 max | 0.03 max | 0.03 max | 0.04 max | 0.03 max | 99.80 min | V 0.05 max Be 0.0003 max |
| 1080A(Al99.8) | 0.15 max | 0.15 max | 0.03 max | 0.02 max | 0.02 max | 0.06 max | 0.02 max | 99.80 min | Ga 0.03 max |
Thermal spray coating wire grades and chemical composition - Nickel
| C | Mn | Si | S | P | Ni | Cr | Mo | Cu | Co | Fe | Ti | Al | Nb | Others | |
| ERNiCrMo-3 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.020 max |
60.00 to 67.00 |
20.00 to 23.00 |
8.00 to 10.00 |
0.50 max | - | 5.00 max | 0.40 max | 0.40 max | 3.15 to 4.15 | - |
| ERNiCr-3 | 0.10 max |
2.50 to 3.50 |
0.50 max | 0.015 max | 0.030 max | 67.00 min |
18.00 to 22.00 |
- | 0.50 max | - | 3.00 max | 0.70 max | - |
2.00 to 3.00 |
- |
| ERNi-1 | 0.0200 max |
0.20 to 0.50 |
0.20 to 0.50 |
0.10 max | 0.10 max |
95.0 to 98.0 |
- | 0.50 max | 0.020 max | 0.50 max | 0.20 max |
2.40 to 2.80 |
0.15 to 0.40 |
Pb 0.0100 max Sn 0.0020 max Zn 0.0020 max |
Packing
| Plastic Spool | Iron Basket | Coil |
Drum
|
|||
| Diameter (mm) | 0.80 to 2.40 | 1.00 to 2.40 | 0.80 to 2.40 | 1.60 to 4.00 | 1.80 to 5.00 | 0.80 to 1.60 |
| Weight (kg) | 15 | 20 | 15 | 25 | 40 to 150 | 125 to 250 |
| Size | DIN 300 | DIN 320 | BS 300 | BS 415 | Id 300-500 | - |
