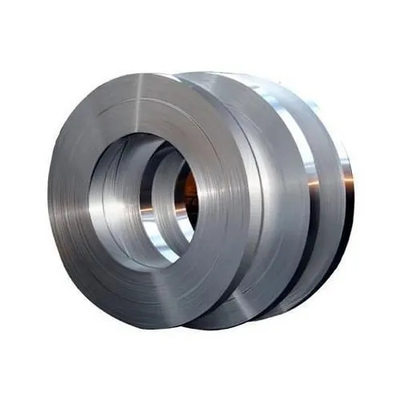

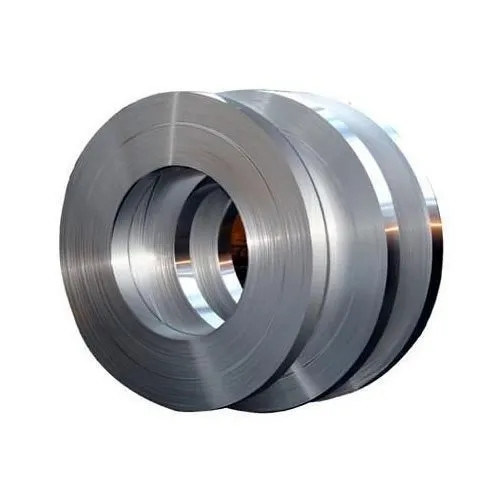

Product Details:
|
Thickness: | 0.1 To 6 Mm | Width: | 10 To 400 Mm |
---|---|---|---|
Delivery Condition 1: | Cold Rolled + Hardened + Tempered | Delivery Condition 2: | Cold Rolled + Soft Annealed : G |
Steel Number: | 1.8159 | Steel Grade: | 50CrV4 |
Surface Condition: | Bright, Grey-blue, Polished, Polished And Colour-tempered | Form: | Steel Coils Strips |
Standard: | DIN 17222 | ||
Highlight: | 1.8159 Cold Rolled Steel Strips,DIN 17222 Cold Rolled Steel Strips,50CrV4 Cold Rolled Spring Steel Strip |
Cold rolled steel strip for springs is distinguished by high dimensional accuracy and good surface quality and, in the cold rolled + hardened + tempered condition (H + A) offers the possibility of achieving high values of hardness, tensile strength and elastic limit.
50CrV4 1.8159 steel is related grades with the same range of alloying additives. It is distinguished by the higher carbon content, which makes it possible to achieve even higher hardness after heat treatment.51CrV4 / 50CrV4 / 58CrV4 / 59CrV4 grades are supplied as hot-rolled bars, drawn bars, wires, spring stripes, forgings are used for the production of heavy-duty springs, axles, crankshafts, connecting rods, compression springs, valve springs, springs, shock absorbers or spring washers.It is mainly supplied in an annealed, softened, heat-treated and raw conditions. Steel does not exhibit corrosion resistance, so products should be protected with greases or coatings.
Steel grade according to DIN 17 222 | Comparable grade according to EURONORM 132 | |
Code number | Material number | |
50 CrV 4 | 1.8159 | 50 CrV 4 |
Thickness: 0.1 to 4mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 600mm; Tolerances: +/- 0.15 to 0.60mm
Steel number | grade number | C | Si | Mn | P | S | Cr | V |
50CrV4 | 1.8159 | 0,47 to 0,55 | 0,15 to 0,40 | 0,70 to 1,10 | 0,035 | 0,035 | 0,90 to 1,20 | 0,10 to 0,20 |
Cold rolled + soft annealed : G
Cold rolled + hardened + tempered : H + A
Steel number | grade number | Tensile strength N/mm2 maximum | Elongation at break (L = 80 mm) % minimum | Vickers hardness maximum |
50CrV4 | 1.8159 | 740 | 10 | 220 |
Steel number | grade number | Tensile strength N/mm2 |
50CrV4 | 1.8159 | 1400 to 2000 |
Steel number | grade number | Vickers hardness |
50CrV4 | 1.8159 | 415 to 590 |
Strip to be supplied in the
1 cold rolled + soft annealed G or
2 cold rolled + soft annealed + cold rolled (G + K) condition
must have a bright, metallically clean surface.
Cold rolled + hardened + tempered (H + A) strip is supplied, as agreed at the time of ordering, with
1 grey-blue (GR),
2 bright (8K),
3 polished (P) or
4 polished and colour-tempered (P & AF) surface.
Approximate values for heat treatment and minimum hardness values in the hardened condition of cold rolled steel strips for springs
Steel number | grade number | Annealed °C | Hardened in oil at °C | Tempered to °C | Vickers hardness in hardened condition minimum |
50CrV4 | 1.8159 | 650 to 690 | 845 to 875 | 300 to 500 | 680 |
EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
