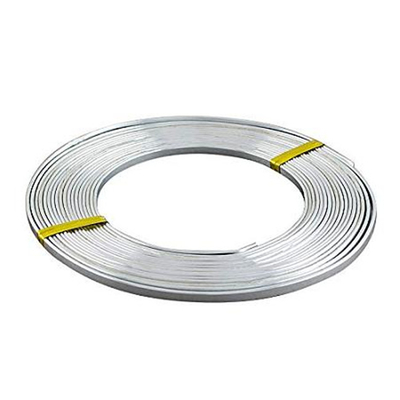

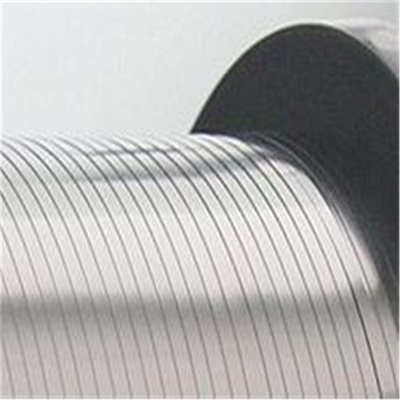

BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring

BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring
BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring

Large Image :  BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: 54SiCrV6 1.8152
Payment & Shipping Terms:
Minimum Order Quantity: 0.1-0.5-1 tons
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring

Description
Thickness: 0.13 To 6.35mm Width: 1 To 15mm
Packaging: Ribbon Or Tape Wound Or A Vibrated Coil Condition: Oiled Or Not Oiled
Finish Or Coating: Bright, Phosphate, Tin. And Other Grade: 54SiCrV6
Number: 1.8152 Classification: Flat Spring Steel Wire
High Light:

1mm Flat Spring Steel Wire

,

1.8152 Flat Spring Steel Wire

,

54SiCrV6

BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring

Grade : 54SiCrV6

Number: 1.8152

Classification: Alloy special steel

Standard:

EN 10089: 2002 Hot rolled steels for quenched and tempered springs. Technical delivery conditions

Equivalent Materials to DIN 54SiCr6

DIN 1.7102 AFNOR 54SiCr6 BS 685 A57 UNI 54SiCr6 AISI 9254 SAE 9254
JIS SUP12 EN 54SiCr6 EN 1.7102 GOST 60S2ChA UNS G92540



Chemical composition % of steel 54SiCrV6 (1.8152): EN 10089-2002

C Si Mn P S Cr V -
0.51 - 0.59 1.2 - 1.6 0.5 - 0.8 max 0.025 max 0.025 0.5 - 0.8 0.1 - 0.2 Cu+10Sn < 0.6



54SiCrV6 1.8152 Flat Steel Wire Thickness, Width and Tolerances

Thickness,: 1 to 10mm; Tolerances +/-0.013 to 0.05mm

Width: 5 to 25mm; Tolerances +/- 0.08 to 0.13mm



Our spring steel wire advantage:
1. Stable linearity, good formability. Uniform and beautiful surface condition.
2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
3. Professional anti-rust protective packaging. On time delivery, competitive price.
4. Large stock available, no MOQ requirement.



Types of Untempered Spring Steel Flat Wire

Hard-Type Spring Steel Flat Wire

Soft-Type Spring Steel Flat Wire

Soft-Type Annealed Spring Steel Flat Wire

Soft-Type Intermediate Spring Steel Flat Wire

Spheroidize-Type Spring Steel Flat Wire



54SiCrV6 1.8152 Flat Steel Wire Finish Surface

Untempered-carbon spring steel flat wire is commonly supplied in a Number 2 regular bright finish. The manufacturer should be consulted if another finish is required.



Hardened and tempered spring steel flat wire is usually supplied in one of the following recognized finishes:

1 Black-tempered,

2 Scaleless-tempered,

3 Bright-tempered,

4 Tempered and polished,

5 Tempered, polished, and colored (blue or straw), and



Unless otherwise specified, flat wire is coated with oil to minimize scratching and to retard rusting in transit. If the product is not to be oiled, it must be so specified.



Mechanical properties of steel 54SiCrV6 (1.8152)

Brinell hardness (HB): (+S) 280
Brinell hardness (HB): (+A) 248
Brinell hardness (HB): (+AC) 230



54SiCrV6 1.8152 Flat Steel Wire Manufacture

Flat wire is generally produced from hot-rolled rods or round wire, by one or more cold-rolling operations, primarily for the purpose of obtaining the size and section desired and for improving surface finish, dimensional accuracy, and varying mechanical properties. Flat wire can also be produced from slitting hot- or cold-rolled flat steel to the desired width. The hot-rolled slit flat steel is subsequently cold reduced. The width to thickness ratio and the specified type of edge generally determine the process that is necessary to produce a specific flat-wire item. The production of good surface quality flat wire is dependent upon scale-free and clean wire, rod, or hot-rolled steel prior to cold-rolling. Scale removal can be accomplished by chemical or mechanical cleaning.



54SiCrV6 1.8152 Flat Steel Wire Thickness, Width and Tolerances

Thickness,: 0.13 to 6.35mm; Tolerances +/-0.013 to 0.05mm

Width: 1 to 15mm; Tolerances +/- 0.08 to 0.13mm



54SiCrV6 1.8152 Flat Steel Wire Edge

Number 1 Edge is a prepared edge of a specified contour (round or square) which is produced when a very accurate width is required or when the finish of the edge suitable for electroplating is required, or both.

Number 2 Edge is not applicable to flat wire products.

Number 3 Edge is an approximately square edge produced by slitting.

Number 4 Edge is a rounded edge produced either by edge rolling or resulting from the flat rolling ofa round section. Width tolerance and edge condition are not as exacting as for a No. 1 Edge.

Number 5 Edge is an approximately square edge produced from slit–edge material on which the burr is eliminated by rolling or filing.

Number 6 Edge is a square edge produced by edge rolling when the width tolerance and edge condition are not as exacting as for No. 1 Edge.



Types of Untempered-Carbon Spring Steel Flat Wire

Hard-Type Carbon Spring Steel Flat Wire

Soft-Type Spring Steel Flat Wire

Soft-Type Annealed Carbon Spring Steel Flat Wire

Soft-Type Intermediate Carbon Spring Steel Flat Wire

Spheroidize-Type Carbon Spring Steel Flat Wire



54SiCrV6 1.8152 Flat Steel Wire Application

Untempered-Carbon Spring Steel Flat Wire: Umbrella rib wire, metal-band saw steel.

Hardened and Tempered Carbon Spring Steel Flat Wire : Tape line, brush wire, heddle wire.





Flat wire start as a round wire and then the round wire is rolled (flattened) or die drawn to meet custom requirements through a series of engineered operations.spring steel flat wire has a wide range of applications in many industries including but not limited to:Regulator springs, Industrial springs, Car seat border springs, Conveyor belt fasteners, Key rings, Saw blade wire, Frames, window mechanisms. High carbon steel springs are very popular due to their econimcal, strong, and durable nature. The Fushun is equipped with the knowledge and expertise to facilitate in your selection of the perfect high carbon steel springs for your project, customizing the springs to your exact specifications.



54SiCrV6 1.8152 Flat Steel Wire Ordering Information

Orders for material to this specification shall include the following information, as necessary, to describe adequately the

desired product:

1 Quantity,

2 Name of material (flat wire identified by type),

3 Analysis or grade, if required

4 Temper of low carbon or type of spring steel

5 Edge

6 Finish or coating

7 Dimensions,

8 Coil type and size requirements

9 Packaging

10 Condition (oiled or not oiled)

11 ASTM designation and date of issue,

12 Copper-bearing steel, if required,

13 Application (part identification or description),

14 Case or heat analysis (request, if desired), and

15 Exceptions to the specification, if required.



Carbon spring steel flat wire is produced to a carbon range in which the specified or required maximum is over 0.25 % by cast or heat analysis. Two types of carbon spring steel flat wire are produced:

1 Untempered cold-rolled carbon spring steel flat wire, produced to several desirable combinations of properties

2 Hardened and tempered carbon spring steel wire.



EN 1.8152 steel is an alloy steel formulated for primary forming into wrought products. 1.8152 is the EN numeric designation for this material. 54SiCrV6 is the EN chemical designation. It has a very low density among EN wrought alloy steels.

54SiCrV6 1.8152 Flat Steel Wire Packaging

Flat wire is prepared for shipment in a number of ways. The material may be bare, paper or burlap wrapped, boxed, skidded or palletized, skidded and shrouded, palletized and shrouded, barrelled, or a combination thereof. The purchaser should specify the method desired. When coils are ordered it should be specified whether a ribbon or tape wound or a vibrated coil is desired. Since coil diameters and weights vary by the manufacturers, the manufacturer should be consulted for specific capability and limitations. When coil weight is specified for low-carbon steel flat wire or for untempered-carbon spring steel flat wire, it is common practice to ship not more than 10 % of the total weight of an item in short coils, which are those weighing between 25 and 75 % of the maximum coil weight.

BS EN DIN 54SiCrV6 1.8152 Cold Rolled or Drawn Flat Alloy Steel Wire For Spring 0

Flat wire start as a round wire and then the round wire is rolled (flattened) or die drawn to meet custom requirements through a series of engineered operations.spring steel flat wire has a wide range of applications in many industries including but not limited to:Regulator springs, Industrial springs, Car seat border springs, Conveyor belt fasteners, Key rings, Saw blade wire, Frames, window mechanisms. High carbon steel springs are very popular due to their econimcal, strong, and durable nature. The Fushun is equipped with the knowledge and expertise to facilitate in your selection of the perfect high carbon steel springs for your project, customizing the springs to your exact specifications.
