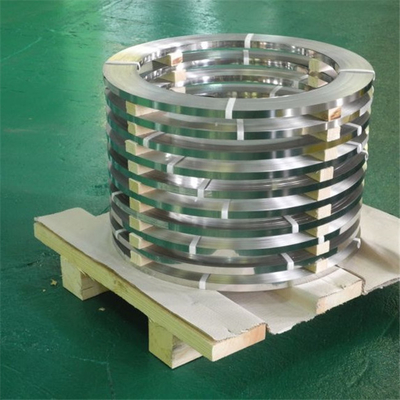

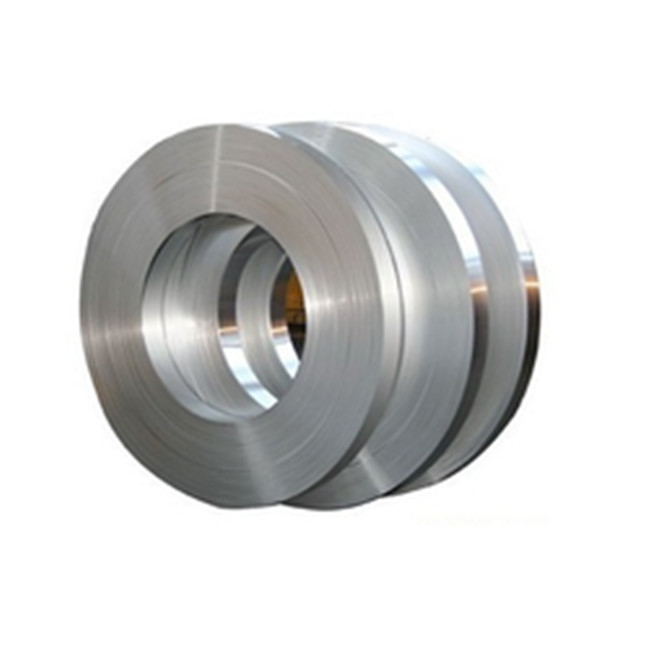

BS EN 10132-4 102Cr6 1.2067 Alloy Spring steel strip

Grade : 102Cr6 Number: 1.2067

102Cr6 1.2067 Alloy Strip Chemical composition

102Cr6 1.2067 Alloy Strip Mechanical properties

102Cr6 1.2067 Alloy Strip Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

-annealed or annealed and skin passed(+A or +LC);

-cold rolled(+CR);

-quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.

102Cr6 1.2067 Alloy Strip Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge

102Cr6 1.2067 Alloy Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.

102Cr6 1.2067 Alloy Strip Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

h) if required, the type of inspection document in accordance with EN 10204.

102Cr6 1.2067 - description and application

102Cr6 material, is a construction steel of spheroidal bearing steel grades which exhibits high hardness, abrasion resistance and relatively easy mechanical treatment. 102Cr6 is used for the production of bearings and other pressure and friction-resistant components that do not operate at elevated temperatures, and the dimensions used are limited to approximately 30mm of thickness.It should also be mentioned that 102Cr6 and the more common equivalent of 102Cr6 have a limited tendency to deformation, medium hardening capacity, and at operating temperatures up to 150 ℃ during friction the product may be tempered.Steel is used for the production of rings, ball bearings, rollers, roller bearings or discs in the form of hot-rolled tubes, round bars, thin and thick sheets, forgings, wires or wire rods. The equivalent of the 100Cr6 steel is the 102Cr6 tool steel, which in turn is the 102Cr6 material.102Cr6 as a differently graded flat or round grade is used for the manufacture of cold forming dies and stamps, file cutters, wood and paper cutting knives, taps, scrapers, or broaches.

Alloy Spring steel strip is a common material used for manufacturing objects like springs, washers, saw blades, lock picks, antennas, and scrapers. It's also commonly used to create lawnmower parts, the landing gear of small aircrafts, and vehicle coil springs.

Equivalent Materials
DIN 100Cr6 DIN 1.2067DIN 102Cr6AFNOR Y100C6AFNOR 102Cr6AFNOR 100Cr6RRAFNOR 100C6BS BL3BS 102Cr6UNI 100Cr6UNE 100Cr6AISI L3AISI 52100AISI L1SAE L3SAE 52100SAE L1JIS SUJ2JIS 100Cr6EN 1.2067ISO 102Cr8GOST ChGB Cr2GB/T Cr2GB/T T30201ASTM Type L3UNS J19965UNS T61203

102Cr6 1.2067 Alloy Strip Inspection and testing

verification of the dimensions

visual examination of the surface quality

Chemical analysis

Extent of testing

Tensile and bending tests

Tolerances on shape
