|Thickness:||0.1 To 6 Mm||Width:||10 To 400 Mm|
|Delivery Condition:||Annealed Or Annealed And Skin Passed; Cold Rolled(+CR); Spheroidized Carbides(+AC)||Surface Condition:||Bright|
|Steel Grade:||C75S||Steel Number:||1.1248|
|Form:||Steel Coils Strips||Standard:||EN BS 10132-4|

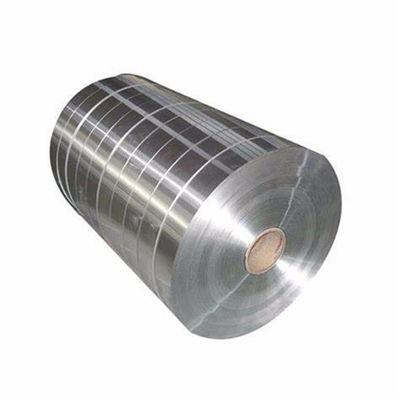

Annealed cold rolled carbon steel strip,
1.8159 cold rolled carbon steel strip,
50crv4 spring steel
Grade : 51CrV4 Number: 1.8159
Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
51CrV4 1.8159 Annealed Steel Strips Chemical composition
|name||number||C||Si||Mn||P max.||S max.||Cr||Mo max.||V||Ni|
|51CrV4||1.8159||0,47 to 0,55||max. 0,40||0,70 to 1,10||0,025||0,025||0,90 to 1,20||0,10||0,1 to 0,25||max. 0,40|
51CrV4 1.8159 Annealed Steel Strips Mechanical properties
|Steel designation||delivery condition|
|annealed (+A) or annealed and skin passed (+LC)||cold rolled (+CR)||quenched and tempered (+QT)|
|name||number||Proof strength max. Mpa||Tensile strength max. Mpa||Elongation % min.||HV max.||Tensile strength max. Mpa||HV max.||Tensile strength Mpa||HV|
|51CrV4||1.8159||550||700||13||220||-||-||1 200 to 1 800||370 to 550|
51CrV4 1.8159 Annealed Steel Strips Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:
NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.
51CrV4 1.8159 Annealed Steel Strips Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
The surface finishes of quenched and tempered cold rolled strip are as follows:
1 grey/Annealed oxide finish:unpolished;
2 brigth tempered:unpolished
3 polished: obtained by fine grinding, abrasive brushing or other processes;
4 polished and coloured:Annealed or yellow colour obtained by oxidization by heat treatment.
51CrV4 1.8159 Annealed Steel Strips Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the designation of the product form (cold rolled narrow strip);
c) the number of the dimensional standard (EN 10140);
d) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
e)the number of this European Standard including the number of the relevant part;
f) steel name or steel number
g) the delivery condition
h) if required, the type of inspection document in accordance with EN 10204.
We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries.
In annealed and lightly rolled materials, they exhibit a large degree of elongation, and can withstand complex processing. Springs are used in plenty of applications in the present-day world. Even so, only a few people have a nodding acquaintance with the brass tracks of spring manufacturing and the different qualities needed for various functions. While coiling steel into a spiral of desired length and diameter is the primary and center-most stage of spring fabrication, other treatments during and after the procedure determine the quality of the product that reaches the consumer.
51CrV4 1.8159 Annealed Steel Strips Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
high carbon steel Annealed tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. Annealed spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.
EN 1.8159 steel is an alloy steel formulated for primary forming into wrought products. 1.8159 is the EN numeric designation for this material. 51CrV4 is the EN chemical designation. It has a moderately low melting temperature and a fairly high embodied energy among EN wrought alloy steels.
The steel, unlike other carbon and alloy grades, is characterized by high hardness, low vulnerability to tempering, resistance for variable and heavy loads, and the ability to operate at elevated temperatures up to 300 ℃. Surface-hardened, retains excellent strength properties of the core while maintaining sufficient surface hardness.58CrV4 / 1.8161 and 59CrV4 / 1.2242 are related grades with the same range of alloying additives. It is distinguished by the higher carbon content, which makes it possible to achieve even higher hardness after heat treatment.51CrV4 / 50CrV4 / 58CrV4 / 59CrV4 grades are supplied as hot-rolled bars, drawn bars, wires, spring stripes, forgings are used for the production of heavy-duty springs, axles, crankshafts, connecting rods, compression springs, valve springs, springs, shock absorbers or spring washers.It is mainly supplied in an annealed, softened, heat-treated and raw conditions. Steel does not exhibit corrosion resistance, so products should be protected with greases or coatings.
51CrV4 1.8159 Annealed Steel Strips Inspection and testing
