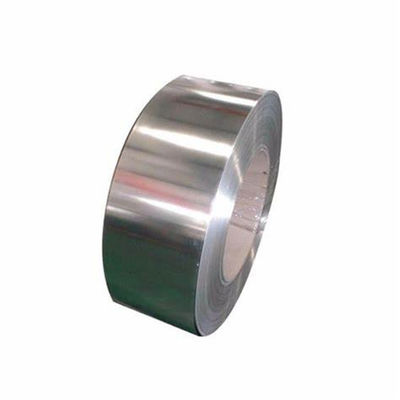

BS EN C60S 1.1211 Annealed Spring Steel Strips

Grade : C60S Number: 1.1211

C60S 1.1211 Annealed Steel Strips Chemical composition

C60S 1.1211 Annealed Steel Strips Mechanical properties

C60S 1.1211 Annealed Steel Strips Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

• -annealed or annealed and skin passed(+A or +LC);
• -cold rolled(+CR);
• -quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.

C60S 1.1211 Annealed Steel Strips Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/Annealed oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:Annealed or yellow colour obtained by oxidization by heat treatment.

C60S 1.1211 Annealed Steel Strips Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

h) if required, the type of inspection document in accordance with EN 10204.

C60S 1.1211 Annealed Steel Strips Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge

We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries.

In annealed and lightly rolled materials, they exhibit a large degree of elongation, and can withstand complex processing. Springs are used in plenty of applications in the present-day world. Even so, only a few people have a nodding acquaintance with the brass tracks of spring manufacturing and the different qualities needed for various functions. While coiling steel into a spiral of desired length and diameter is the primary and center-most stage of spring fabrication, other treatments during and after the procedure determine the quality of the product that reaches the consumer.

high carbon steel Annealed tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. Annealed spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.

C60S 1.1211 belongs to the class of quenched tempered spring steel strip. Thanks to his patented homogeneous structure and his tight tolerances this steel is often used for instrument making. Other applications include various types of springs with high tensile strength as a function of the diameter. Corrosion resistance: A carbon steel has no natural resistance to corrosion in the usual sense. He must be protected as required with an appropriate procedure before general corrosion. Heat treatment: By +QT it receives its application for the typical microstructure. Weldability: The quenched tempered spring steel strip should not be welded because of the heat input to the structure and work hardening which can have a huge affected. In addition, hardness cracks by welding were provokated, as with all high carbon steels.

C60S 1.1211 Annealed Steel Strips Inspection and testing

• verification of the dimensions
• visual examination of the surface quality
• Chemical analysis
• Extent of testing
• Tensile and bending tests
• Tolerances on shape
• Any requirement from clients
