JIS G3521 SWRH47B Hard Drawn Spring Steel Wire

JIS G3521 SWRH47B Hard Drawn Spring Steel Wire
JIS G3521 SWRH47B Hard Drawn Spring Steel Wire JIS G3521 SWRH47B Hard Drawn Spring Steel Wire

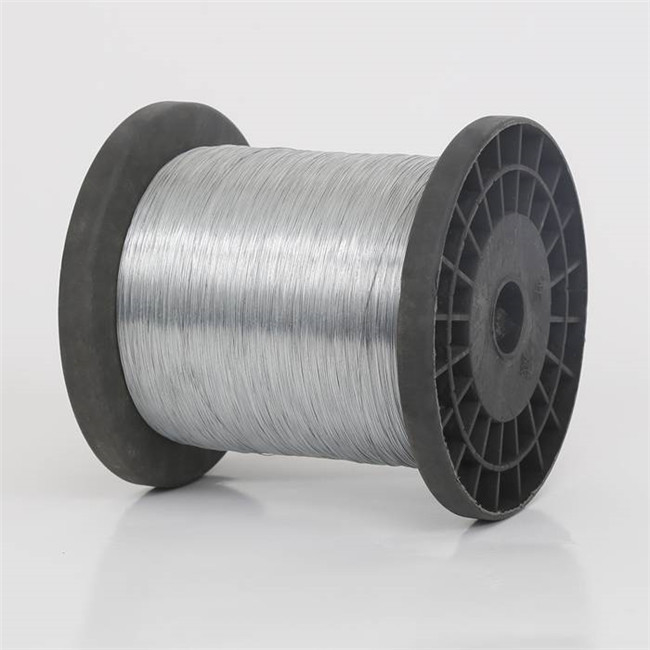

Large Image :  JIS G3521 SWRH47B Hard Drawn Spring Steel Wire

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: SWRH47B
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

JIS G3521 SWRH47B Hard Drawn Spring Steel Wire

Description
Diameter: 0.01-8mm Form Of Delivery: A Coil (singles, Carriers Or Formers), Spools, Spoolless Cores Or As Straight Lengths.
Drawn Condition: Dry Drawn/paste Draw/gray Bright/wet Drawn/liquor Finished Heat Treatment: Patenting
Surface Condition: Bright /phosphate Coated /reddish /copper Plated/galvanised /zinc/aluminium Coated/yellow Coated/white (liquor Finished) Grade: SWRH47B
Classification: Hard Drawn Spring Steel Wire Standard: JIS G3521 SWRH47B
High Light:

JIS G3521 Hard Drawn Steel Wire

,

Spring Hard Drawn Steel Wire

,

SWRH47B

JIS G3521 SWRH47B Hard Drawn Spring Steel Wire



Grade : SWRH47B Classification: Structural steel High carbon steel



Standards:

JIS G 3506 : High carbon steel wire rods Applications: High carbon steel wire rods to be used for the manufacture of hard drawn steel wires,oil tempered steel wires, hard drawn steel wires for prestressed concrete, galvanized wire strands, wipe ropes, etc.



SWRH47B Hard Drawn Spring Steel Wire Chemical composition

C % Si% Mn% P % max. S % max.
0,44-0,51 0,10-0,30 0,30-0,60 0.030 0.030



Supplying Size:

Diameter:0.01-8mm



Our Advantage

1. Stable linearity, good formability. Uniform and beautiful surface condition.

2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and    Raw-Material Test Certificates.

3. Professional anti-rust protective packaging. On time delivery, competitive price.

4. Large stock available, no MOQ requirement.



SWRH47B Hard Drawn Spring Steel Wire Drawing condition

All cold drawn spring wire is commonly shaped by drawing. A distinction as to the method of drawing can be

made between:

1 dry drawn (d): drawn through pulverized lubricants such as soap, stearates or similar substances;

2 paste drawn (ps): drawn through very viscous greases of mineral oil base, tallow, synthetic waxes or similar substances;

3 gray bright (gr): drawn through rape oil, thin-bodied mineral oils or similar substances;

4 wet drawn (w): drawn through aqueous emulsions of greases or oil emulsions;

5 liquor finished (l): drawn through aqueous solutions with or without addition of metal salts.



Hard-drawn springs wire are affordable, flexible, and reliable carbon steel wire designed to withstand static loads and consistent stress. Also called cold-drawn spring steel, this wire type is manufactured to a specific diameter without additional tempering or processing. Improve your application with hard-drawn wire from Fushun. We're ISO 9001:2008-certified spring manufacturer dedicated to supplying our customers with high-performance spring products on time and at a competitive price. Hard-drawn spring steel wire, or HDMB spring wire, is manufactured using a cold-drawing process. During this activity, the wire being worked is coated in oil and pulled through one or more dies to reduce the wire width. One of the most economical and versatile steel wire types, hard-drawn wire is perfect for a range of general-purpose applications.



Information to be supplied by the purchaser

The purchaser shall clearly state in his enquiry or order the product and following information:

a) the desired quantity;

b) the term spring steel wire or straightened and cut lengths;

c) the number of this European standard: JIS G3521;

d) the steel grade

e) the nominal wire diameter selected from Table 3 and for cut length the length and the length tolerance class

f) the coating indicated by its abbreviation and surface finish

g) the form of delivery and unit mass

h) the type of inspection document;

i) any particular agreement



SWRH47B Hard Drawn Spring Steel Wire Manufacture Process

wire drawn to size by cold deformation of a starting material that has been subjected to a thermal treatment of patenting, giving structure suitable for subsequent rolling or drawing.

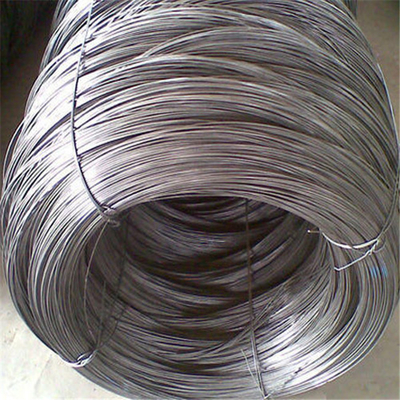

SWRH47B Hard Drawn Spring Steel Wire Form of delivery

The wire shall be delivered in unit packages of a coil (singles, carriers or formers), spools, spoolless cores or as straight lengths. Unless otherwise agreed at the time of ordering, the form of delivery will be coils; straight lengths shall be supplied in bundles.



SWRH47B Hard Drawn Spring Steel Wire Coating and surface finish

The spring wire may be supplied phosphate coated (ph) either dry drawn or wet drawn, copper coated (cu), zinc (Z) or zinc/aluminium (ZA) coated.

Other coatings, considered as special, can be agreed between the purchaser and the supplier. If no specific surface finish is specified, the type of finish shall be at the manufacturers discretion. In addition the wire can be ordered with an oiled surface for all surface finishes.



The alloy spring steels have a definite place in spring materials, particularly for conditions involving high stress and for applications where shock or impact loading occurs. Alloy spring steels also can withstand higher and lower temperatures than the high-carbon steels and are obtainable in either the annealed or pre tempered conditions. Note: These materials are not regularly stocked in a wide variety of sizes. Copper-base alloys are important spring materials because of their good electrical properties combined with their excellent resistance to corrosion. Although these materials are more expensive than the high-carbon and the alloy steels, they are frequently used in electrical components and in subzero temperatures.



Spring wire is a product with very specific technology. It has a strong structure and a good balance of flexibility and tensile strength. According to different surface treatments, spring wire can be divided into: Hot-dipped galvanized wire, electro-galvanized spring wire and PVC coated spring wire. In addition, we also provide stainless steel spring. In the mattress industry, spring wire is used to manufacture springs and hoops. In the Springs' industry, spring wire is used to manufacture mechanical springs. For other usages, our products also have gained a good reputation from the appliance as controlling cable or connecting wire for automobile industry and hard needle.



SWRH47B Hard Drawn Spring Steel Wire Surface quality

The surface of the wire shall be smooth and as free as possible from grooves, tears, rust and other surface defects, which have a noticeable adverse effect on the application of the wire.

In the case of zinc or zinc/aluminium coated spring wire the amount of zinc or zinc/aluminium on the wire surface shall satisfy the minimum values specified



SWRH47B Hard Drawn Spring Steel Wire Marking and packaging

Each unit shall be properly marked and identified so as to permit traceability and reference to the inspection documents.

The labels shall withstand normal handling and contact with oil; they shall show the information according to JIS G3521. Other information shall be the subject of an arrangement between the parties.

Wire shipments shall be suitably protected against mechanical damage and/or contamination during transport.
