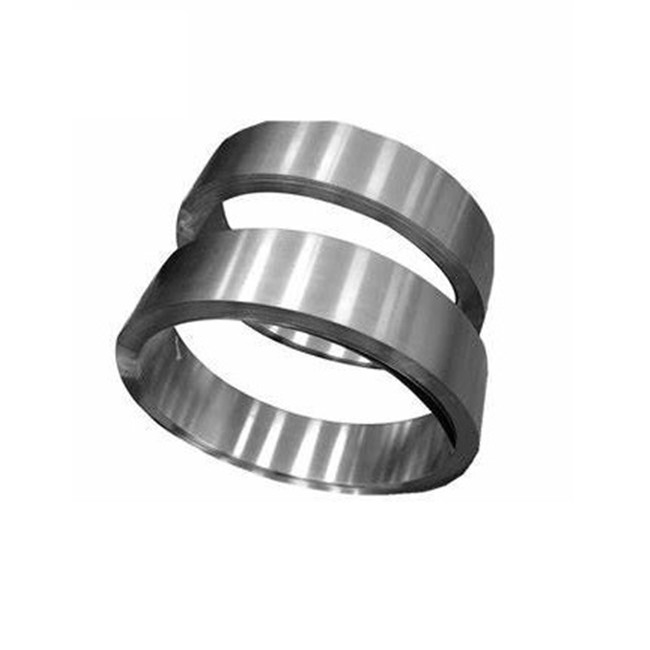

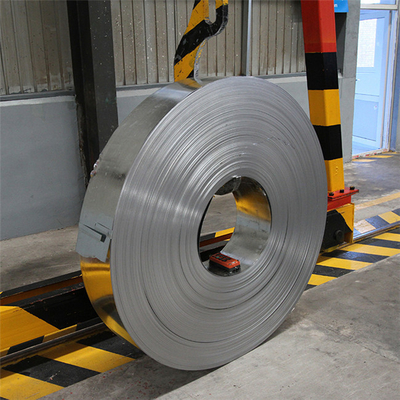

SK85 High Carbon Spring Steel Strip

SK85 High Carbon Spring Steel Strip
SK85 High Carbon Spring Steel Strip SK85 High Carbon Spring Steel Strip

Large Image :  SK85 High Carbon Spring Steel Strip

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: SK85-CSP
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

SK85 High Carbon Spring Steel Strip

Description
Grade: SK85 Feature: High Carbon
Shape: Steel Strip Surface Condition: 1 Grey/blue Oxide Finish:unpolished;2 Bright Tempered:unpolished; 3 Polished: 4 Polished And Coloured:blue Or Yellow Colour
Steel Grade: SK85-CSP Form: Steel Coils Strips
Standard: JIS G4802 SK85-CSP
High Light:

6Mm Spring Steel Strip Coil

,

JIS G4802 Spring Steel Strip Coil

,

SK85-CSP

JIS G4802 SK85-CSP High Carbon Spring Steel Strip



Grade : SK85-CSP Classification: Structural steel Standards: JIS G 4802 : Cold-rolled steel strip for springs



Equivalent Materials
ASTM A29 Grade 1086 ASTM A510 Grade G10860 ASTM A568 Grade 1086 ASTM A682 Grade 1086 DIN 1.1269 DIN Ck85 DIN C85S AFNOR C85S AFNOR XC90 AFNOR C90RR



Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.



Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



SK85-CSP High Carbon Spring Steel Strip Chemical composition

C Si Mn P max. S max. Cr Mo max. Ni
0,80 to 0,90 0,15 to 0,35 0,40 to 0,70 0,025 0,025 max. 0,40 0,10 max. 0,40



SK85-CSP High Carbon Spring Steel Strip Mechanical properties

Steel designation delivery condition
annealed (+A) or annealed and skin passed (+LC) cold rolled (+CR) quenched and tempered (+QT)
name number Proof strength max. Mpa Tensile strength max. Mpa Elongation % min. HV max. Tensile strength max. Mpa HV max. Tensile strength Mpa HV
C85S SK85-CSP 535 670 15 210 1190 325 1 200 to 2 000 370 to 600



SK85-CSP High Carbon Spring Steel Strip Delivery condition

Cold rolled narrow steel strip covered by JIS G4802 shall be supplied in one of the following delivery conditions:

-annealed or annealed and skin passed(+A or +LC);

-cold rolled(+CR);

-quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.





SK85-CSP High Carbon Spring Steel Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.



High carbon steel is an ideal material for custom flat springs, custom clips, and custom sheet metal stampings. High Carbon Steel Strips combines ease of fabrication with good strength and surface finish, is valued for its strength properties and operates at significantly higher levels than the mild steel grades. High carbon steel strip can be finished to meet the needs of a wide range of products. Where tensile strength and hardness are required, High Carbon steels are the material of choice. High Carbon Steel Strips Grades : C60, C65, C70, C75, C85, HC-14, En 42 J, C-98, C-100, C-124, HC21 etc. We offer spring steel strip in various shapes and sizes according to your final uses. These have excellent hardens property and high yield strength. Clients can avail these at competitive prices.



Spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.



C85S, 1.1269, AISI 1086 specification and application : C85S is non-alloyed carbon structural steel with low hardening capacity for oil hardening for low-duty, periodically operating springs, springs and spring elements, immune to the temper brittleness. It is characterized by its high hardness and abrasion resistance, while maintaining high strength. It is used for flat and spiral springs, machine parts or saws of all kinds for cutting.



Grade 85 and C85S steel are mainly used as steel for ball mills, press plates, stone saws, wire for steel ropes, briquetting press parts. C85S and 85 steels are non-weldable and resistant to corrosive environments due to their high carbon content and low levels of alloying additives. During heat treatment steel is vulnerable to decarburization and oxidation.
