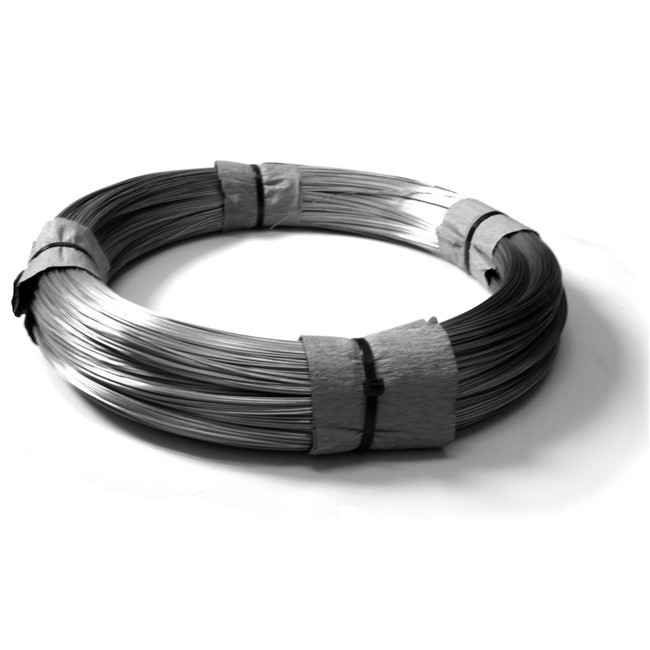

55Cr3 1.7176 Alloy Spring Steel Wire

55Cr3 1.7176 Alloy Spring Steel Wire
55Cr3 1.7176 Alloy Spring Steel Wire 55Cr3 1.7176 Alloy Spring Steel Wire

Large Image :  55Cr3 1.7176 Alloy Spring Steel Wire

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: 55Cr3 1.7176
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: NEGOTIABLE
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

55Cr3 1.7176 Alloy Spring Steel Wire

Description
Grade: 55Cr3 1.7176 Feature: Alloy Steel
Form: Wires Surface Condition: Black And Light Oiled
GRADE: 55Cr3 FROM: Wires
STANDARD: BS EN 10270-2 55Cr3 1.7176 NUMBER: 1.7176
Classification: Alloy Spring Steel Wire
High Light:

30mm Chrome Silicon Wire

,

1.7176 steel

,

55cr3 spring steel

BS EN 10270-2 55Cr3 1.7176 Alloy Spring Steel Wire for mechanical springs

Quality Standard:

JIS G4801 2005 Spring Steels

BS EN 10089 2002 Hot rolled steels for quenched and tempered springs

ASTM A29 Standard Specification Steel Bars, Carbon and Alloy, Hot-Wrought, General Requirements



All Grades Comparison:

Material No. EN BS AFNOR JIS ASTM GB
1.7176 55Cr3 525A58, 525H60 55C3 SUP9 5155 55CrMnA



Chemical Composition(%)

Steel Grade C Si Mn P S Cr
5155 0.51-0.59 0.15-0.35 0.70-0.90 0.035 max 0.040 max 0.75-1.00
55Cr3 0.52-0.59 0.40 max 0.70-1.00 0.025 max 0.025 max 0.70-1.00
SUP9 0.52-0.60 0.15-0.35 0.65-0.95 0.030 max 0.030 max 0.65-0.95
SUP9A 0.56-0.64 0.15-0.35 0.70-1.00 0.030 max 0.030 max 0.70-1.00
55CrMnA 0.52-0.60 0.17-0.37 0.65-0.95 0.025 max 0.025 max 0.65-0.95



55Cr3 1.7176 Diameter

Thickness,: 3 to 40mm; Tolerances +/-0.013 to 0.05mm



Our spring steel wire advantage:

1. Stable linearity, good formability. Uniform and beautiful surface condition.

2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and Raw-Material Test Certificates.

3. Professional anti-rust protective packaging. On time delivery, competitive price.

4. Large stock available, no MOQ requirement.





55Cr3 1.7176 Alloy Spring Steel Wire Dimensional tolerances

Wire in coils

The tolerances level for the wire diameter is based on EN 10218-2:1996 level:

-T5 for wire diameter up to and including 0,80 mm;

-T4 for 0,80 mm up to 10,00 mm;

-T3 above 10,00 mm.

Wire in cut lengths

The requirements for length tolerances and straightness are as in EN 10218-2:1996. The tolerance on the nominal length shall only be in plus keeping the same tolerance range



HEAT TREATMENT:

FORGING:Hot forming temperature: 1050 – 850°C.

SOFT ANNEALING: Heat to 640 – 680°C, cool slowly in furnace. This will produce a maximum Brinell hardness of 248.

HARDENING: Harden from a temperature of 830 – 860°C followed by oil quenching.

TEMPERING:Tempering temperature: 430 – 500°C, air.



Mill′s test certificate:

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.



55Cr3 1.7176 Non metallic inclusions

The VD grades shall be checked for maximum size of inclusion according to ENV 10247. The allowable level of inclusions shall be agreed between the parties at the enquiry and order.

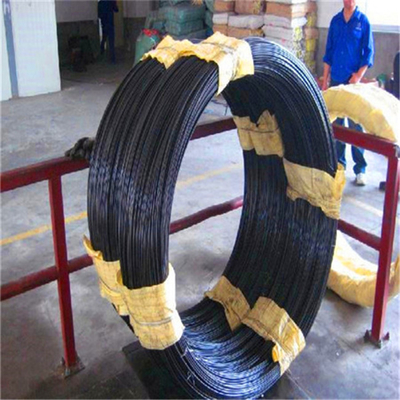

55Cr3 1.7176 Form of delivery

Alloy wire shall be supplied in coils, on spools or in cut lengths. The wire in coils or on spools shall form one continuous length. Wire in coil may also be supplied on carriers containing one or more coils.



For VD and TD grades no welds are permitted after the heat treatments preceding the final drawing operation; for 'FD' grades no welds shall be made at finished size unless agreed otherwise between the parties.



The supplied wire units shall be tightly bound to ensure that wire spiral waps do not spring out unforeseen. The starting end shall be marked and at the coil ends the wire shall be covered with a protective cap.



55Cr3 1.7176 Alloy Spring Steel Wire Surface finish

The wire shall be protected against corrosion and mechanical damage. Unless otherwise specified the wire shall be delivered in slightly oiled condition.



55Cr3 1.7176 Alloy Spring Steel Wire Surface quality

The surface of the wire shall be smooth and permissible depth of surface defects at the coil ends shall be in accordance with Table.

By in-line control of surface defects the areas of the coil with defects above the level of Table 7 shall be marked. In-line testing is not performed for FD-grades.

The number of defective parts that can be tolerated may be agreed between the parties.



55Cr3 1.7176 Surface decarburization

The wire grades according to this standard shall be free from total decarburization. The maximum depths of the partially decarburized zone shall be checked at the end of the coils.



Alloy Spring Steel Wire that is heat treated in line in the following way: it is first transformed into austenite, quenched in oil or similar quenching medium, followed immediately by tempering by heating to the appropriate temperature.



Alloy Spring Steel Wire made from unalloyed or alloyed steels. They are primarily subject to torsional stresses such as in compression and extension springs and in special cases also for applications where the spring wire is subject to bending stresses such as lever springs. As a rule unalloyed steels are used for applications at room temperature whereas alloyed steels are generally used at a temperature above room temperature. Alloyed steels may also be chosen for above average tensile strengths.



55Cr3 1.7176 Alloy Spring Steel Wire Classification

The grade for normal applications made from unalloyed or alloyed steel has the abbreviation FD and is intended for static applications.

Spring steel wire for medium fatigue levels, such as required for some clutch springs from unailoyed or alloyed steel, has the abbreviation TD.

Spring steel wire from unalloyed steel or alloyed steel intended for use under severe dynamic duty such as for valve springs or other springs with similar requirements has the abbreviation VD.

Medium and high fatigue grades TD and VD are characterized by high steel cleanliness, specific chemical, mechanical and technological parameters and a well defined surface condition in relation to the allowable depth of surface defects and decarburization.

The static grade FD is characterized by its chemical, mechanical and technological characteristics as well as by a specified surface condition concerning surface defects and decarburization.



55Cr3 1.7176 Testing and inspection

Coiling test

Torsion test

heat analysis;

result of the tensile test

result of the torsion test

actual wire diameter

Tensile test



Information to be supplied by the purchaser

The purchaser shall clearly state in his enquiry or order the product and following information :

a)the desired quantity;

b)the number of this European Standard: EN 10270-2;

c)wire grade

d)the nominal wire diameter;

e)the form of delivery and unit mass;

f)the type of inspection document;

g)any particular agreement made.
