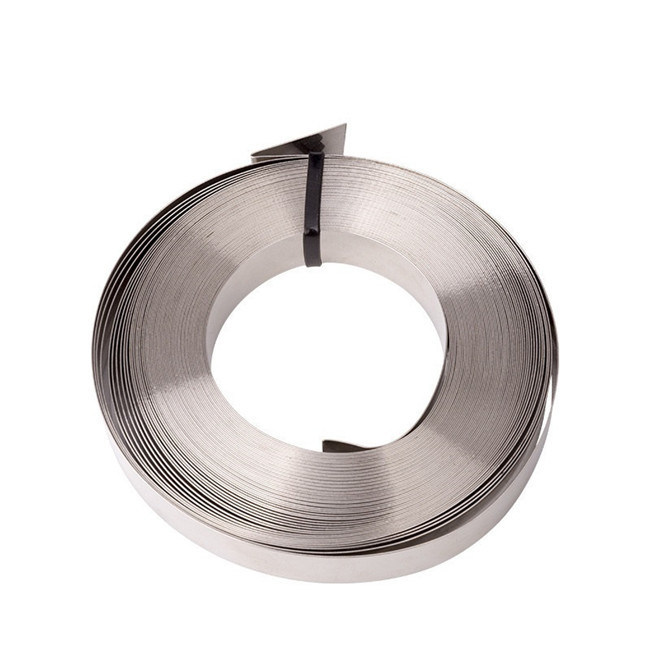

Large Image :  80CrV2 1.2235 Alloy Spring Steel Strip

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: 80CrV2 1.2235
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

80CrV2 1.2235 Alloy Spring Steel Strip

Description
Grade: 80CrV2 Feature: Alloy Steel
Form: Strips Surface Condition: 1 Grey/blue Oxide Finish:unpolished;2 Bright Tempered:unpolished; 3 Polished: 4 Polished And Coloured:blue Or Yellow Colour
Number: 1.2235 Standard: BS EN 10132-4 80CrV2 1.2235
High Light:

80CrV2 Alloy Steel Strip

,

1.2235 Alloy Steel Strip

,

1 inch stainless steel strips annealed

BS EN 10132-4 80CrV2 1.2235 Alloy Spring Steel Strip



Grade : 80CrV2 Number: 1.2235

Standard:
EN 10132-4: 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Spring steels and other applications

Equivalent Materials
DIN 1.2235DIN 80CrV2AFNOR 80CrV2BS 80CrV2EN 1.2235GOST 8ChGOST 9ChGOST 8ChFGOST 9ChF


Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.



Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



80CrV2 1.2235 Alloy Spring Strip Chemical composition

name number C Si Mn P max. S max. Cr Mo max. V Ni
80CrV2 1.2235 0,75 to 0,85 0,15 to 0,35 0,30 to 0,50 0,025 0,025 0,40 to 0,60 0,10 0,15 to 0,25 max. 0,40



80CrV2 1.2235 Alloy Spring Strip Mechanical properties

Steel designation delivery condition
annealed (+A) or annealed and skin passed (+LC) cold rolled (+CR) quenched and tempered (+QT)
name number Proof strength max. Mpa Tensile strength max. Mpa Elongation % min. HV max. Tensile strength max. Mpa HV max. Tensile strength Mpa HV
80CrV2 1.2235 580 720 12 225 - - 1 200 to 1 800 370 to 550



80CrV2 1.2235 Alloy Spring Strip Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

-annealed or annealed and skin passed(+A or +LC);

-cold rolled(+CR);

-quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.



80CrV2 1.2235 Alloy Spring Strip Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge



80CrV2 1.2235 Alloy Spring Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.



80CrV2, 1.2235 - characteristics and application

80CrV2 Steel is intended for production of tools for cold-working with wood, metal and soft plastics. Supplied in the form of flat products - sheets and strips, exhibits considerable resistance to tempering and the possibility of hardening thin elements.The disadvantage of the products is susceptibility to warping during oil hardening. The steel is used for the production of band saws, machine knives, burrs, cutting dies, blanking dies and disc saws for wood, and metal cutting shears. 80CrV2 multi-use steel used to make blades for cutting tools and instruments. Characteristics of 80CrV2 steel: The 80CrV2 carbon steel is a low alloy steel that has better tensile strength and quench properties than non-alloyed carbon steels.



80CrV2 1.2235 Alloy Spring Strip Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

h) if required, the type of inspection document in accordance with EN 10204.



Mechanical properties of steel 80CrV2 (1.2235)
Nominal thickness (mm): 0.3 - 3
Rm - Tensile strength (MPa) (+A) 720
Nominal thickness (mm): 0.3 - 3
Rm - Tensile strength (MPa) (+QT) 1200-1800
Nominal thickness(mm): 0.3 - 3
Rp0.2 0.2% proof strength (MPa) (+A) 580
Nominal thickness (mm): 0.3 - 3
A - Min. elongation Lo = 80 mm (%) (+A) 12
Vickers hardness ( HV): (+A) 225
Vickers hardness ( HV): (+QT) 370 - 550


80CrV2 1.2235 Alloy Spring Strip Inspection and testing

verification of the dimensions

visual examination of the surface quality

Chemical analysis

Extent of testing

Tensile and bending tests

Tolerances on shape
