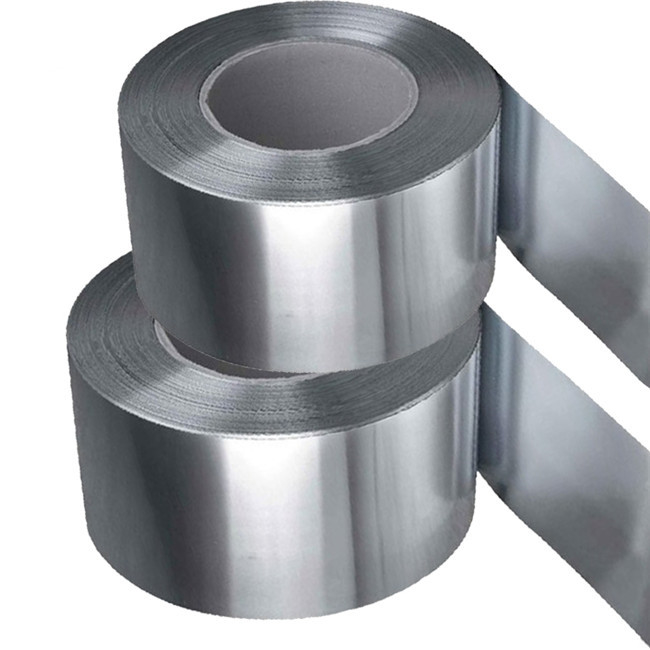

1.4372 Stainless Spring Steel Strip

Certification
China Hunan Fushun Metal Co., Ltd. certification
China Hunan Fushun Metal Co., Ltd. certification
I'm Online Chat Now

1.4372 Stainless Spring Steel Strip

1.4372 Stainless Spring Steel Strip
1.4372 Stainless Spring Steel Strip 1.4372 Stainless Spring Steel Strip

Large Image :  1.4372 Stainless Spring Steel Strip

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: X12CrMnNiN17-7-5 1.4372
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

1.4372 Stainless Spring Steel Strip

Description
Grade: 1.4372 Feature: Stainless Steel
Shape: Steel Strip Surface Condition: Bright Surface (2H), Or A Rough, Matt Surface
Stainless Grade: X12CrMnNiN17-7-5 Stainless Number: 1.4372
From: Stainless Strips Coils Standard: BS 10151 X12CrMnNiN17-7-5 1.4372
High Light:

CR 430 Stainless Steel Coil

,

X12CrMnNiN17-7-5

,

1.4372 stainless steel

X12CrMnNiN17-7-5 1.4372 Stainless Spring Steel Strip

1.4372 is the EN numeric designation for this material. X12CrMnNiN17-7-5 is the EN chemical designation. It has a moderately high electrical conductivity among wrought austenitic stainless steels. In addition, it has a moderately low base cost and a moderately low embodied energy.



Dimensions and tolerances
Thickness: 0.01 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 5 to 1219 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.



Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



X12CrMnNiN17-7-5 1.4372 Stainless Strip Chemical composition

Steel designation % by mass
Name Number C SI Mn

P

max.

S max. N Cr Mo Ni Others
Austenitic steels
X12CrMnNiN17-7-5 1.4372 max. 0,15 max. 1,00 5,5 to 7,5 0.045 0,015 0,05 to 0,25 16,0 to 18,0   3,5 to 5,5



X12CrMnNiN17-7-5 1.4372 Stainless Strip Mechanical properties

Designation

Tensile strength

MPa,

+C1000 1 000 to 1 150
+C1150 1 150 to 1 300
+C1300 1 300 to 1 500
+C1500 1 500 to 1 700
+C1700 1 700 to 1 900
+C1900 1 900to2 200



X12CrMnNiN17-7-5 1.4372 Stainless Strip Delivery condition

This steel is only hardened by cold rolling. The modulus of elasticity, E , has a value of approximately 21 0 MPa, which cannot be increased by heat treatment.



X12CrMnNiN17-7-5 1.4372 Stainless Strip Surface

In the condition +C, strip shall be delivered with a bright surface (2H), or a rough, matt surface



Information to be supplied by the purchaser

The following information shall be supplied by the purchaser at the time of enquiry and order:

a) the quantity to be delivered;

  • the designation of the product form (e.g. strip or cut length);
  • the number of the dimensional standard (EN 10258);
  • the dimensions and tolerances on thickness, width and length according to EN 10258 and, if applicable, letters denoting relevant special tolerances
  • the internal coil diameter according to EN 10258
  • the number of this European Standard (EN 10151);
  • steel name or steel number
  • the delivery condition
  • the type of inspection document in accordance with EN 10204



X12CrMnNiN17-7-5 1.4372 Stainless Strip Internal soundness

The products shall be free from internal defects that could impair their application to a significant extent. Tests appropriate for an assessment of the internal characteristics may be agreed upon at the time of enquiry and order.



X12CrMnNiN17-7-5 1.4372 Stainless Strip Delivery form

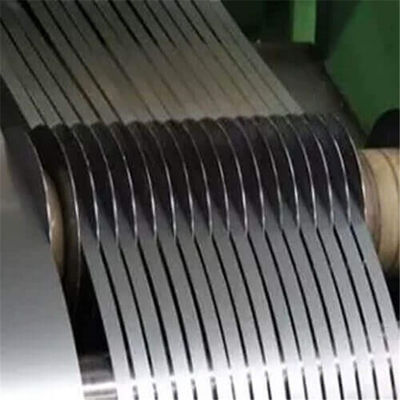

Strip is usually supplied in coils. Thin strip may be wound on a supporting centre, made of steel, cardboard or other material, in order to avoid the collapse of the centre. Strip may also be supplied as a spool, in order to increase coil weight, whilst minimising coil outside diameter, in the latter case, any welds shall be clearly marked.



Alternatively, strip may be supplied in cut lengths. These may be in a box, or on a pallet, and perhaps strapped together in bundles.



Several coils, or bundles of cut lengths, may be assembled on a carrier.



Unless otherwise agreed at the time of enquiry and order, the choice of delivery form is left to the discretion of the manufacturer.



Unless otherwise agreed at the time of enquiry and order, cold-rolled strip for springs is delivered with the edges. By special agreement, strip can also be supplied with mill edges or with special edges, e.g. machined edges, deburred edges or edges dressed to produce a regular form, usually square or round.



Options

—any requirement concerning manufacturing process of the steel and of the products

—any requirement concerning form of delivery

—any requirement concerning condition of the edges

—any requirement concerning special treatment conditions

—any requirement concerning special technological properties

—any requirement concerning surface finish

—any requirement concerning bending limit of strip differing

—any requirement concerning testing of internal soundness

—any requirement concerning additional specific testing

—any requirement concerning tensile testing for checking the uniformity of tensile strength

—any requirement concerning determination of product analysis

—any requirement concerning carrying out of bending ability tests

—any requirement concerning tolerances on flatness, edge waviness and edge camber

—any requirement concerning measurement of coil set including the relevant values





Cold rolled narrow strip of thicknesses up to and including 3 mm in rolled widths fess than 600 mm made from the stainless steel grades. The steels are used in the conditions for the production of springs and spring parts that are exposed to corrosive effects and sometimes slightly increased temperatures.



Grade :  X12CrMnNiN17-7-5
Number:  1.4372
Classification:  Austenitic stainless steel - special grade
Density:  7.8 g/cm ³

Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10151: 2003 Stainless steel strip for springs. Technical delivery conditions
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes


X12CrMnNiN17-7-5 1.4372 Stainless Strip Inspection and testing

Product analysis

Bending ability

Coil set

Extent of testing

Tensile and bending tests

Tolerances on shape

verification of the dimensions

visual examination of the surface quality of the products;

Tensile test without checking the uniformity of tensile strength

Tensile test for checking the uniformity of tensile strength
