Product Details:
|
| Thickness: | 0.1 To 6 Mm | Width: | 10 To 400 Mm |
|---|---|---|---|
| Delivery Condition: | Annealed Or Annealed And Skin Passed(+A Or +LC); Cold Rolled(+CR); Spheroidized Carbides(+AC) | Surface Condition: | Bright |
| Steel Grade: | C67S | Steel Number: | 1.1231 |
| Form: | Steel Coils Strips | Standard: | EN BS 10132-4 C67S 1.1231 |
| High Light: | C67S Cold Rolled Steel Coil,1.1231 Cold Rolled Steel Coil,ISO9001 cr sheet coil |
||

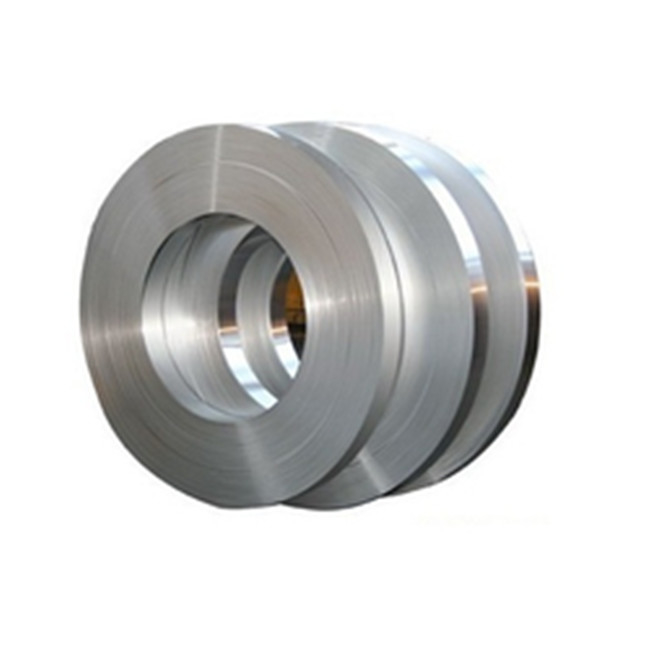

C67S 1.1231 Cold Rolled Narrow Spring Steel Strip
Grade : C67S Number: 1.1231
Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
C67S 1.1231 Cold Rolled Spring Steel Strip Chemical composition
| name | number | C | Si | Mn | P max. | S max. | Cr | Mo max. | Ni |
| C67S | 1.1231 | 0,65 to 0,73 | 0,15 to 0,35 | 0,60 to 0,90 | 0,025 | 0,025 | max. 0,40 | 0,10 | max. 0,40 |
C67S 1.1231 Cold Rolled Spring Steel Strip Mechanical properties
| Steel designation | delivery condition | ||||||||
| annealed (+A) or annealed and skin passed (+LC) | cold rolled (+CR) | quenched and tempered (+QT) | |||||||
| name | number | Proof strength max. Mpa | Tensile strength max. Mpa | Elongation % min. | HV max. | Tensile strength max. Mpa | HV max. | Tensile strength Mpa | HV |
| C67S | 1.1231 | 510 | 640 | 16 | 200 | 1140 | 315 | 1 200 to 1 900 | 370 to 580 |
C67S 1.1231 Cold Rolled Spring Steel Strip Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:
1 cold rolled and annealed or annealed and skin passed(+A or +LC);
2 cold rolled(+CR);
3 spheroidized carbides(+AC)
We also can supply quenched and tempered(+QT).
C67S 1.1231 Cold Rolled Spring Steel Strip Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
C67S 1.1231 Cold Rolled Spring Steel Strip Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
c) the number of the dimensional standard (EN 10140);
d) the designation of the product form (cold rolled narrow strip);
e) the delivery condition
f) steel name or steel number
g) the number of this European Standard including the number of the relevant part;
h) if required, the type of inspection document in accordance with EN 10204.
C67S 1.1231 German standard: DIN EN 10132 International steel grades: SAE:1070 JIS: S70CM Unalloyed steel for springs as belleville washers, spring plates and stabilizer bars for motor vehicles Hot forming and heat treatment: Forging or hot rolling: Normalising: Soft annealing: Hardening: 1100 - 800°C 810 - 840°C/air 680 - 710°C/furnace 815 - 845°C/oil min. 59 HRC or 670 HV as quenched
C67S 1.1231 Cold Rolled Spring Steel Strip Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
Spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.
C67S 1.1231 Cold Rolled Spring Steel Strip Inspection and testing
verification of the dimensions
visual examination of the surface quality
Chemical analysis
Extent of testing
Tensile and bending tests
Tolerances on shape
