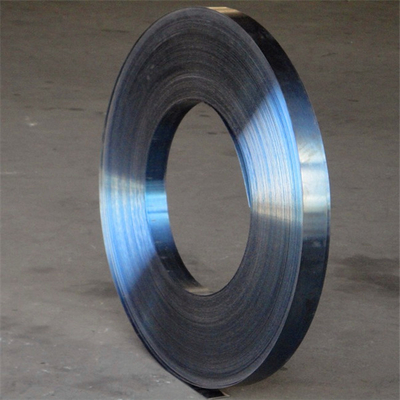

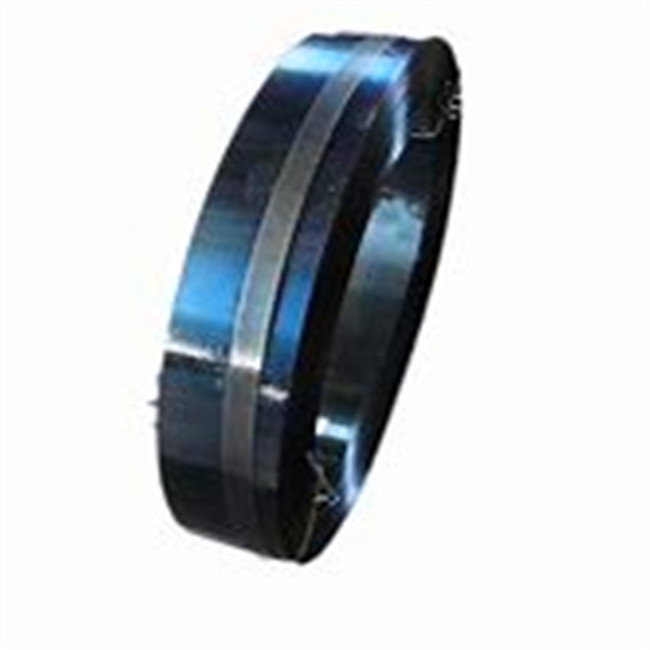

BS EN C85S 1.1269 Blue Spring Steel Strips

BS EN C85S 1.1269 Blue Spring Steel Strips
BS EN C85S 1.1269 Blue Spring Steel Strips BS EN C85S 1.1269 Blue Spring Steel Strips

Large Image :  BS EN C85S 1.1269 Blue Spring Steel Strips

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: C85S 1.1269
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

BS EN C85S 1.1269 Blue Spring Steel Strips

Description
Thickness: 1 To 8 Mm Width: 10 To 400 Mm
Delivery Condition: Quenched Tempered(+QT) Surface Condition: Polished Blue
EN Grade: C85S Steel EN Number: 1.1269 Steel
Supply Form: Coil And Plate Standard: BS EN 10132-4 C85S 1.1269
High Light:

2mm Spring Steel Strips

,

1.1269 steel

,

C85S steel

BS EN C85S 1.1269 Blue Spring Steel Strips



Grade : C85S Number: 1.1269

Standard:
EN 10132-4: 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Spring steels and other applications


Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.



Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



C85S 1.1269 Blue Steel Strips Chemical composition

name number C Si Mn P max. S max. Cr Mo max. Ni
C85S 1.1269 0,80 to 0,90 0,15 to 0,35 0,40 to 0,70 0,025 0,025 max. 0,40 0,10 max. 0,40



C85S 1.1269 Blue Steel Strips Mechanical properties

Steel designation delivery condition
annealed (+A) or annealed and skin passed (+LC) cold rolled (+CR) quenched and tempered (+QT)
name number Proof strength max. Mpa Tensile strength max. Mpa Elongation % min. HV max. Tensile strength max. Mpa HV max. Tensile strength Mpa HV
C85S 1.1269 535 670 15 210 1190 325 1 200 to 2 000 370 to 600





C85S 1.1269 Blue Steel Strips Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

  • -annealed or annealed and skin passed(+A or +LC);
  • -cold rolled(+CR);
  • -quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.





C85S 1.1269 Blue Steel Strips Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.





C85S 1.1269 Blue Steel Strips Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

h) if required, the type of inspection document in accordance with EN 10204.



We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.



C85S 1.1269 Blue Steel Strips Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge



Equivalent Materials
GB 85GB U20852IS 85C6IS 7JIS SK85-CSPGOST 85GOST 85AASTM A684 Grade 1086AISI 1086ASTM G10860DIN Ck85DIN 1.1269DIN C85SAFNOR C85SAFNOR XC90AFNOR C90RRBS C85SBS CS80BS 80HSBS 80CSSAE 1086JIS SWRH82AEN 1.1269ISO C85SGB/T 85GB/T U20852UNS G10860

The steel C85S is used as cold rolled strip for springs and special applications in thicknesses of up to 6 mm and as tempered cold strip in thicknesses from 0.30 to 3.00 mm. The cold-rolled steel strip for springs possess a very high precision of measurements and very good state of the surface.


Grade 85 and C85S steel are mainly used as steel for ball mills, press plates, stone saws, wire for steel ropes, briquetting press parts. C85S and 85 steels are non-weldable and resistant to corrosive environments due to their high carbon content and low levels of alloying additives. During heat treatment steel is vulnerable to decarburization and oxidation.



high carbon steel blue tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. blue spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.



C85S, 1.1269, AISI 1086 specification and application : C85S is non-alloyed carbon structural steel with low hardening capacity for oil hardening for low-duty, periodically operating springs, springs and spring elements, immune to the temper brittleness. It is characterized by its high hardness and abrasion resistance, while maintaining high strength. It is used for flat and spiral springs, machine parts or saws of all kinds for cutting.



C85S 1.1269 Blue Steel Strips Inspection and testing

  • verification of the dimensions
  • visual examination of the surface quality
  • Chemical analysis
  • Extent of testing
  • Tensile and bending tests
  • Tolerances on shape
  • Any requirement from clients
