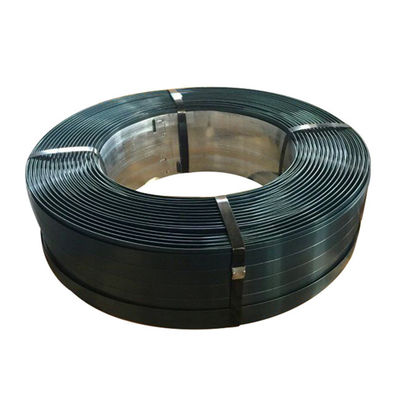

BS EN C60S 1.1211 Blue Spring Steel Strips

BS EN C60S 1.1211 Blue Spring Steel Strips
BS EN C60S 1.1211 Blue Spring Steel Strips BS EN C60S 1.1211 Blue Spring Steel Strips

Large Image :  BS EN C60S 1.1211 Blue Spring Steel Strips

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: C60S 1.1211
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

BS EN C60S 1.1211 Blue Spring Steel Strips

Description
Thickness: 1 To 8 Mm Width: 10 To 400 Mm
Delivery Condition: Quenched Tempered(+QT) Surface Condition: Polished Blue
EN Grade: C60S Steel EN Number: 1.1211 Steel
Supply Form: Coil And Plate Standard: BS EN 10132-4 C60S 1.1211
High Light:

hardened and tempered spring steel strip

,

1.1211 Tempered Spring Steel Strip

,

C60S Tempered Spring Steel Strip

BS EN C60S 1.1211 Blue Spring Steel Strips



Grade : C60S Number: 1.1211
Standard:
EN 10132-4: 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Spring steels and other applications




Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.



Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



C60S 1.1211 Blue Steel Strips Chemical composition

name number C Si Mn P max. S max. Cr Mo max. Ni
C60S 1.1211 0,57 to 0,65 0,15 to 0,35 0,60 to 0,90 0,025 0,025 max. 0,40 0,10 max. 0,40



C60S 1.1211 Blue Steel Strips Mechanical properties

Steel designation delivery condition
annealed (+A) or annealed and skin passed (+LC) cold rolled (+CR) quenched and tempered (+QT)
name number Proof strength max. Mpa Tensile strength max. Mpa Elongation % min. HV max. Tensile strength max. Mpa HV max. Tensile strength Mpa HV
C60S 1.1211 495 620 17 195 1100 305 1 150 to 1 750 345 to 530





C60S 1.1211 Blue Steel Strips Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

  • -annealed or annealed and skin passed(+A or +LC);
  • -cold rolled(+CR);
  • -quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.



C60S 1.1211 Blue Steel Strips Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge



C60S 1.1211 Blue Steel Strips Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.





C60S 1.1211 Blue Steel Strips Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;





high carbon steel blue tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. blue spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.



We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.



C60S 1.1211 belongs to the class of quenched tempered spring steel strip. Thanks to his patented homogeneous structure and his tight tolerances this steel is often used for instrument making. Other applications include various types of springs with high tensile strength as a function of the diameter. Corrosion resistance: A carbon steel has no natural resistance to corrosion in the usual sense. He must be protected as required with an appropriate procedure before general corrosion. Heat treatment: By +QT it receives its application for the typical microstructure. Weldability: The quenched tempered spring steel strip should not be welded because of the heat input to the structure and work hardening which can have a huge affected. In addition, hardness cracks by welding were provokated, as with all high carbon steels.


Equivalent Materials
ASTM A684 Grade 1060AISI 1060ASTM G10600DIN 1.1221DIN Ck60DIN C60EAFNOR XC60AFNOR C60RRAFNOR 9160C031AFNOR 9160/C25AFNOR XC65AFNOR C60EBS 060A62BS 070M60BS CS60BS C60EBS 60HSBS 60CSUNI C60SS 16781064SAE 1060JIS S58CJIS S60CMJIS S65CMJIS S60C-CSPJIS S65C-CSPJIS S65CJIS 30AJIS 37AEN C60EEN 1.1221ISO C60EISO C60E4ISO CS60ISO S58CGOST 60GOST 60GGOST 60GAGB 60GB U20602GB/T 60GB/T CRB970GB/T U20602ASTM 1060UNS G10600UNS G10640


C60S 1.1211 Blue Steel Strips Inspection and testing

  • verification of the dimensions
  • visual examination of the surface quality
  • Chemical analysis
  • Extent of testing
  • Tensile and bending tests
  • Tolerances on shape
  • Any requirement from clients

High carbon steel is an ideal material for custom flat springs, custom clips, and custom sheet metal stampings. High Carbon Steel Strips combines ease of fabrication with good strength and surface finish, is valued for its strength properties and operates at significantly higher levels than the mild steel grades. High carbon steel strip can be finished to meet the needs of a wide range of products. Where tensile strength and hardness are required, High Carbon steels are the material of choice. High Carbon Steel Strips Grades : C60, C65, C70, C75, C85, HC-14, En 42 J, C-98, C-100, C-124, HC21 etc. We offer spring steel strip in various shapes and sizes according to your final uses. These have excellent hardens property and high yield strength. Clients can avail these at competitive prices.
