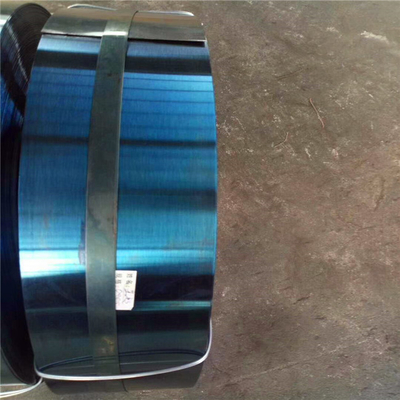

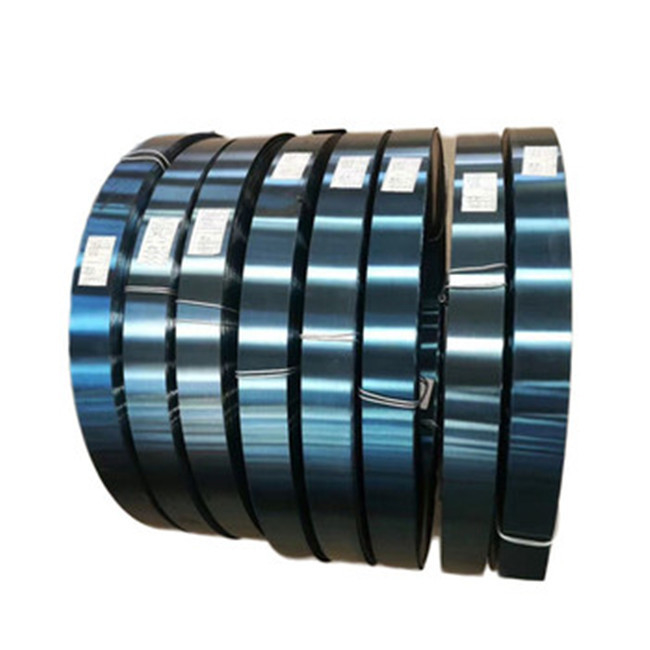

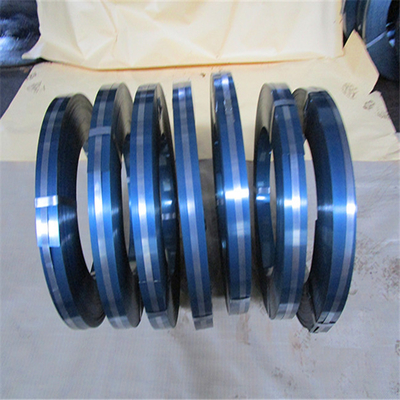

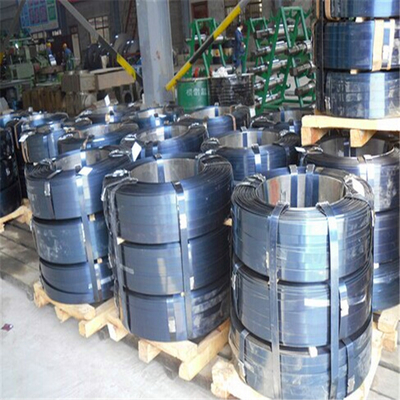

BS EN 125Cr2 1.2002 Blue Spring Steel Strips

BS EN 125Cr2 1.2002 Blue Spring Steel Strips



Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.

Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement

125Cr2 1.2002 Blue Steel Strips Chemical composition


125Cr2 1.2002 Blue Steel Strips Mechanical properties



125Cr2 1.2002 Blue Steel Strips Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

• -annealed or annealed and skin passed(+A or +LC);
• -cold rolled(+CR);
• -quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.

125Cr2 1.2002 Blue Steel Strips Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
The surface finishes of quenched and tempered cold rolled strip are as follows:
1 grey/blue oxide finish:unpolished;
2 brigth tempered:unpolished
3 polished: obtained by fine grinding, abrasive brushing or other processes;
4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.

125Cr2 1.2002 Blue Steel Strips Inspection and testing

• verification of the dimensions
• visual examination of the surface quality
• Chemical analysis
• Extent of testing
• Tensile and bending tests
• Tolerances on shape
• Any requirement from clients

High carbon steel is an ideal material for custom flat springs, custom clips, and custom sheet metal stampings. High Carbon Steel Strips combines ease of fabrication with good strength and surface finish, is valued for its strength properties and operates at significantly higher levels than the mild steel grades. High carbon steel strip can be finished to meet the needs of a wide range of products. Where tensile strength and hardness are required, High Carbon steels are the material of choice. High Carbon Steel Strips Grades : C60, C65, C70, C75, C85, HC-14, En 42 J, C-98, C-100, C-124, HC21 etc. We offer spring steel strip in various shapes and sizes according to your final uses. These have excellent hardens property and high yield strength. Clients can avail these at competitive prices.

125Cr2 1.2002 Blue Steel Strips Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the designation of the product form (cold rolled narrow strip);
c) the number of the dimensional standard (EN 10140);
d) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
e)the number of this European Standard including the number of the relevant part;
f) steel name or steel number
g) the delivery condition
h) if required, the type of inspection document in accordance with EN 10204.

high carbon steel blue tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. blue spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.

Steel C125S, 1.1224 - implementation and specification
Non-alloy carbon spring steel is used for leaf springs and springs with small cross-sections. It is characterized by low hardenability and high carbon range in relation to C90S, C75S, C85S, and C67S steel. Designed for spring elements requiring high elasticity and hardness.It does not show corrosion resistance, and during heat treatment it is exposed to decarburization and oxidation, which means that the material should be protected against treatment using a protective atmosphere. Poorly carried out treatment is associated with reduced fatigue strength.Products made of C125S steel and its equivalents are produced in the form of flat semi-finished products - cold rolled strips, small-format thin sheets. Tempering of C125S steel is carried out in oil, and after tempering the product shows the structure of tempered martensite.Products made of C125S steel are characterized by high tensile strength and yield strength. Thermal improvement consists in austenitising the product at a temperature of 780 - 860 and tempering at a temperature of 350 - 500 ℃.

We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.
