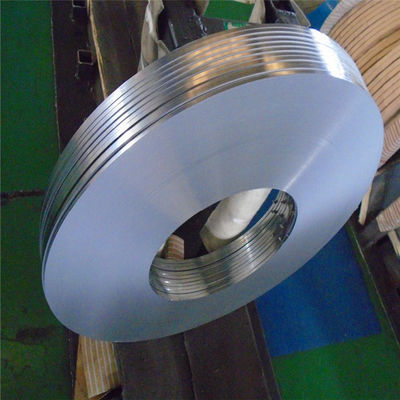

BS EN 80CrV2 1.2235 Blue Spring Steel Strips

BS EN 80CrV2 1.2235 Blue Spring Steel Strips
BS EN 80CrV2 1.2235 Blue Spring Steel Strips BS EN 80CrV2 1.2235 Blue Spring Steel Strips BS EN 80CrV2 1.2235 Blue Spring Steel Strips BS EN 80CrV2 1.2235 Blue Spring Steel Strips

Large Image :  BS EN 80CrV2 1.2235 Blue Spring Steel Strips

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: 80CrV2 1.2235
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

BS EN 80CrV2 1.2235 Blue Spring Steel Strips

Description
Thickness: 1 To 8 Mm Width: 10 To 400 Mm
Delivery Condition: Quenched And Tempered(+QT) Surface Condition: Polished Blue
EN Grade: 80CrV2 Steel EN Number: 1.2235 Steel
Supply Form: Coil Or Plate Standard: BS EN 10132-4 80CrV2 1.2235
Highlight:

80CrV2 Blue Steel Strips

,

1.2235 Blue Steel Strips

,

8mm Spring Steel Strips

BS EN 80CrV2 1.2235 Blue Spring Steel Strips

Grade : 80CrV2 Number: 1.2235

Standard:
EN 10132-4: 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Spring steels and other applications


Equivalent Materials
DIN 1.2235DIN 80CrV2AFNOR 80CrV2BS 80CrV2EN 1.2235GOST 8ChGOST 9ChGOST 8ChFGOST 9ChF


Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.

Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement


80CrV2 1.2235 Blue Steel Strips Chemical composition

namenumberCSiMnP max.S max.CrMo max.VNi
80CrV21.22350,75 to 0,850,15 to 0,350,30 to 0,500,0250,0250,40 to 0,600,100,15 to 0,25max. 0,40


80CrV2 1.2235 Blue Steel Strips Mechanical properties

Steel designationdelivery condition
annealed (+A) or annealed and skin passed (+LC)cold rolled (+CR)quenched and tempered (+QT)
namenumberProof strength max. MpaTensile strength max. MpaElongation % min.HV max.Tensile strength max. MpaHV max.Tensile strength MpaHV
80CrV21.223558072012225--1 200 to 1 800370 to 550



80CrV2 1.2235 Blue Steel Strips Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

  • -annealed or annealed and skin passed(+A or +LC);
  • -cold rolled(+CR);
  • -quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.


80CrV2 1.2235 Blue Steel Strips Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
The surface finishes of quenched and tempered cold rolled strip are as follows:
1 grey/blue oxide finish:unpolished;
2 brigth tempered:unpolished
3 polished: obtained by fine grinding, abrasive brushing or other processes;
4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.


80CrV2 1.2235 Blue Steel Strips Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the designation of the product form (cold rolled narrow strip);
c) the number of the dimensional standard (EN 10140);
d) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
e)the number of this European Standard including the number of the relevant part;
f) steel name or steel number
g) the delivery condition
h) if required, the type of inspection document in accordance with EN 10204.



80CrV2 1.2235 Blue Steel Strips Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge




Mechanical properties of steel 80CrV2 (1.2235)
Nominal thickness (mm): 0.3 - 3
Rm - Tensile strength (MPa) (+A) 720
Nominal thickness (mm): 0.3 - 3
Rm - Tensile strength (MPa) (+QT) 1200-1800
Nominal thickness(mm): 0.3 - 3
Rp0.2 0.2% proof strength (MPa) (+A) 580
Nominal thickness (mm): 0.3 - 3
A - Min. elongation Lo = 80 mm (%) (+A) 12
Vickers hardness ( HV): (+A) 225
Vickers hardness ( HV): (+QT) 370 - 550


high carbon steel blue tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. blue spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.

80CrV2 1.2235 - characteristics and application
80CrV2 Steel is intended for production of tools for cold-working with wood, metal and soft plastics. Supplied in the form of flat products - sheets and strips, exhibits considerable resistance to tempering and the possibility of hardening thin elements.The disadvantage of the products is susceptibility to warping during oil hardening. The steel is used for the production of band saws, machine knives, burrs, cutting dies, blanking dies and disc saws for wood, and metal cutting shears. 80CrV2 multi-use steel used to make blades for cutting tools and instruments. Characteristics of 80CrV2 steel: The 80CrV2 carbon steel is a low alloy steel that has better tensile strength and quench properties than non-alloyed carbon steels.



We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.


80CrV2 1.2235 Blue Steel Strips Inspection and testing

  • verification of the dimensions
  • visual examination of the surface quality
  • Chemical analysis
  • Extent of testing
  • Tensile and bending tests
  • Tolerances on shape
  • Any requirement from clients
