Product Details:
|
Thickness: | 1 To 8 Mm | Width: | 10 To 400 Mm |
---|---|---|---|
Delivery Condition: | Quenched And Tempered(+QT) | Surface Condition: | Polished And Blue |
Steel Grade: | 48Si7 | Steel Number: | 1.5021 |
Supply Form: | Coil Or Plate | Standard: | BS EN 10132-4 |
Highlight: | 48Si7 Blue Steel Strips,9mm Blue Steel Strips,1.5021 Hardened spring steel |

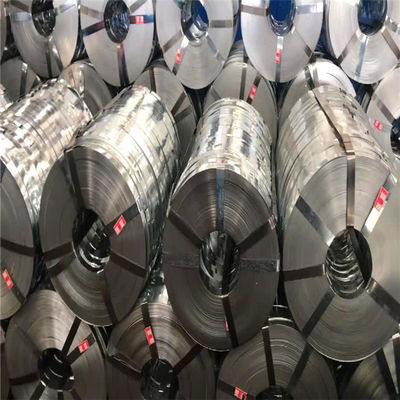

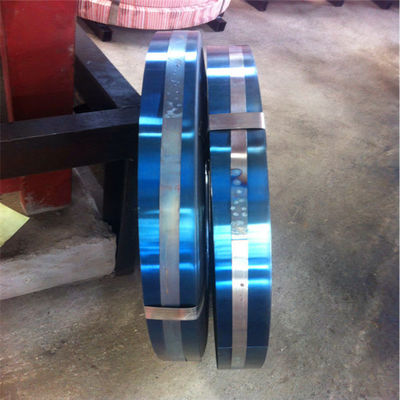

48Si7 1.5021 Blue Spring Steel Strips
Grade : 48Si7 Number: 1.5021
Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
48Si7 1.5021 Blue Steel Strips Chemical composition
name | number | C | Si | Mn | P max. | S max. | Cr | Mo max. | Ni |
48Si7 | 1.5021 | 0,45 to 0,52 | 1,60 to 2,00 | 0,50 to 0,80 | 0,025 | 0,025 | max. 0,40 | 0,10 | max. 0,40 |
48Si7 1.5021 Blue Steel Strips Mechanical properties
Steel designation | delivery condition | ||||||||
annealed (+A) or annealed and skin passed (+LC) | cold rolled (+CR) | quenched and tempered (+QT) | |||||||
name | number | Proof strength max. Mpa | Tensile strength max. Mpa | Elongation % min. | HV max. | Tensile strength max. Mpa | HV max. | Tensile strength Mpa | HV |
48Si7 | 1.5021 | 580 | 720 | 13 | 225 | - | - | 1 200 to 1 700 | 370 to 520 |
48Si7 1.5021 Blue Steel Strips Delivery condition
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:
NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.
48Si7 1.5021 Blue Steel Strips Surface finish
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
The surface finishes of quenched and tempered cold rolled strip are as follows:
1 grey/blue oxide finish:unpolished;
2 brigth tempered:unpolished
3 polished: obtained by fine grinding, abrasive brushing or other processes;
4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.
48Si7 1.5021 Blue Steel Strips Mandatory information
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the designation of the product form (cold rolled narrow strip);
c) the number of the dimensional standard (EN 10140);
d) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
e)the number of this European Standard including the number of the relevant part;
f) steel name or steel number
g) the delivery condition
h) if required, the type of inspection document in accordance with EN 10204.
48Si7 1.5021 Blue Steel Strips Decarburization
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
high carbon steel blue tempered spring steel strip is harder, less bendable, and has a higher degree of spring back. Finished products made from this material have better edge retention, which correlates to the material's other properties. blue spring steel strip is used widely in the manufacture of springs, prominently in automotive and industrial suspension applications. It is a high carbon steel with a very high yield strength. This material allows objects made of spring steel to return to their original shape despite significant deflection or twisting.
48Si7 1.5021 - specifications and application
Silicon spring steel is one of the most popular, simple, basic and at the same time the longest used grades in the production of spring elements and springs in the automotive industry and railroading.
Silicon steels are characterized by high strength properties, low ductility, resilience, susceptibility to decarburization, resistance to medium loads, low hardenability, and difficult welding.
We hold expertise in providing a qualitative range of Blue Tempered Steel Strips to our clients at affordable prices. Owing to features like high efficiency, optimum performance and durable finish standards they are highly demanded in the market. Our ranges of these are used in various industries like automobile, cable and electronic industries. Clients can avail these strips in various dimensions with thickness as per their own requirement. We supply these at market leading prices. Known for its durability and rigidity, blue spring steel is often used in the production of clips, blades/knives, springs, coiled springs, washers, saw blades, trowels, scrapers, doctor blades for pulp mill & printing applications, spring clamps, antennas, lock picks, clock hands, grass/grain cutting tools, and brake discs.
48Si7 steels, as well as replacements EN/DIN 1.5021 have similar concentrations of alloy additives - including Silicon, which is responsible for the resilience of steel. Differences in grades result from the concentration of carbon, responsible for obtaining the appropriate hardness after heat treatment.Silicon steel, found mainly in the form of round bars and hot rolled flat bars, is used for the production of spiral, disk, bumper, cone, coil and flat springs, springing rings and spring washers, springs for cultivators, springs of steam locomotives, personal and goods wagons, flat vehicle springs rail, spring plates, safety valve springs and check valves.
48Si7 1.5021 Blue Steel Strips Inspection and testing
