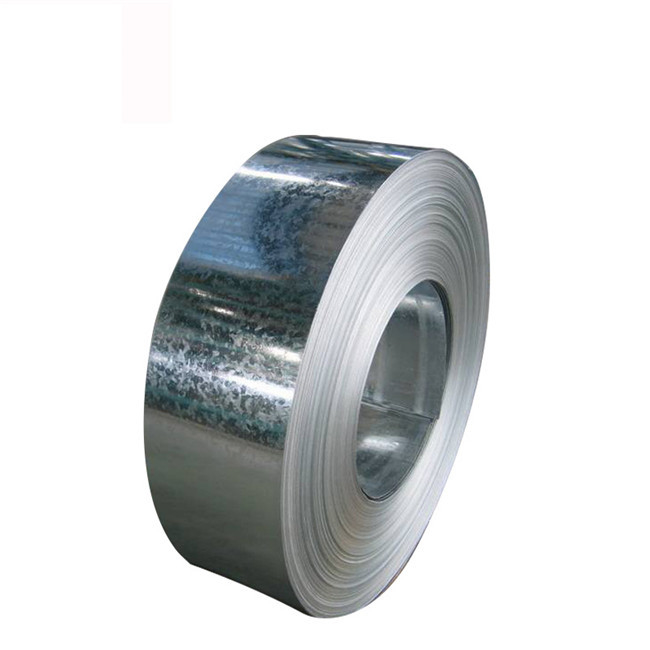

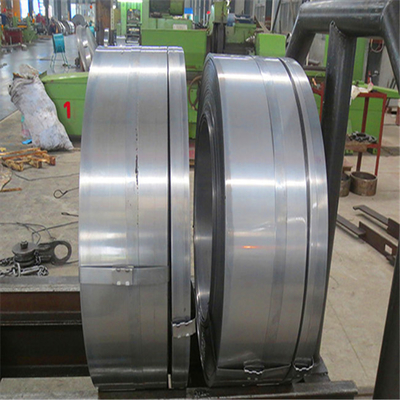

BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip

BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip
BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip

Large Image :  BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: C60S 1.1211
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring Steel Strip

Description
Thickness: 1 To 8 Mm Width: 10 To 400 Mm
Delivery Condition: Quenched Hardened Tempered Surface Condition: 1 Grey/blue Oxide Finish:unpolished;2 Bright Tempered:unpolished; 3 Polished: 4 Polished And Coloured:blue Or Yellow Colour
Grade: C60S Number: 1.1211
Form: Steel Coils Standard: EN 10132-4 C60S 1.1211
High Light:

1.1211 Tempered Spring Steel Strip

,

EN 10132-4 Tempered Spring Steel Strip

,

C60S steel

BS EN 10132-4 C60S 1.1211 Quenched Tempered Spring steel strip



Grade : C60S
Number: 1.1211
Classification: Steel
Standard:
EN 10132-4: 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Spring steels and other applications


Dimensions and tolerances
Thickness: 1 to 8 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60

Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement



C60S 1.1211 Quenched Tempered Spring Strip Chemical composition

name number C Si Mn P max. S max. Cr Mo max. Ni
C60S 1.1211 0,57 to 0,65 0,15 to 0,35 0,60 to 0,90 0,025 0,025 max. 0,40 0,10 max. 0,40



C60S 1.1211 Quenched Tempered Spring Strip Mechanical properties

Steel designation delivery condition
annealed (+A) or annealed and skin passed (+LC) cold rolled (+CR) quenched and tempered (+QT)
name number Proof strength max. Mpa Tensile strength max. Mpa Elongation % min. HV max. Tensile strength max. Mpa HV max. Tensile strength Mpa HV
C60S 1.1211 495 620 17 195 1100 305 1 150 to 1 750 345 to 530



C60S 1.1211 Quenched Tempered Spring Strip Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters

denoting relevant special tolerances;

e)the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

h) if required, the type of inspection document in accordance with EN 10204.



C60S 1.1211 Quenched Tempered Spring Strip Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

-annealed or annealed and skin passed(+A or +LC);

-cold rolled(+CR);

-quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.



Hardened and Tempered Steel Strip (also known as hardened and tempered High carbon steel strip or, hardened and tempered carbon spring steel strip) is the basic raw material from which many different components are made, substantially being spring-type applications ranging from clutch plate segments to washers, retractor springs and even to tree springs in riding saddles and traditional clock springs. These strip products are a specialty of the Company and considerable plant development has taken place in recent years to facilitate a very wide range of dimensions, mechanical properties and coil weights. Hardened and Tempered Steel Strip gauges of between 0.10mm and 2.00mm can be processed and, depending on the appropriate combination to suit the process equipment, strip widths of between 4.76mm to 240mm are produced. The facilities also allow up to 2000kg coils to be produced though most are well below this, being governed by a very approximate relationship of 100kg per 25mm of width.



C60S 1.1211 belongs to the class of quenched tempered spring steel strip. Thanks to his patented homogeneous structure and his tight tolerances this steel is often used for instrument making. Other applications include various types of springs with high tensile strength as a function of the diameter. Corrosion resistance: A carbon steel has no natural resistance to corrosion in the usual sense. He must be protected as required with an appropriate procedure before general corrosion. Heat treatment: By +QT it receives its application for the typical microstructure. Weldability: The quenched tempered spring steel strip should not be welded because of the heat input to the structure and work hardening which can have a huge affected. In addition, hardness cracks by welding were provokated, as with all high carbon steels.



Equivalent Materials
ASTM A684 Grade 1060AISI 1060ASTM G10600DIN 1.1221DIN Ck60DIN C60EAFNOR XC60AFNOR C60RRAFNOR 9160C031AFNOR 9160/C25AFNOR XC65AFNOR C60EBS 060A62BS 070M60BS CS60BS C60EBS 60HSBS 60CSUNI C60SS 16781064SAE 1060JIS S58CJIS S60CMJIS S65CMJIS S60C-CSPJIS S65C-CSPJIS S65CJIS 30AJIS 37AEN C60EEN 1.1221ISO C60EISO C60E4ISO CS60ISO S58CGOST 60GOST 60GGOST 60GAGB 60GB U20602GB/T 60GB/T CRB970GB/T U20602ASTM 1060UNS G10600UNS G10640



The surface finish of Hardened and Tempered Steel Strip products is not too critical in general engineering applications where the normal blue-black (also known as blue-grey) oxidized finish from the heat treatment is satisfactory. By control of the atmospheres in the furnaces non-oxidised surfaces can also be produced, on a selected basis, and alternatively, steels can be satin or bright polished were needed, these finishes being as much for cosmetic reasons as for engineering purposes.



C60S 1.1211 Quenched Tempered Spring Strip Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge



C60S 1.1211 Quenched Tempered Spring Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat

treatment.



C60S 1.1211 Quenched Tempered Spring Strip Inspection and testing

verification of the dimensions

visual examination of the surface quality

Chemical analysis

Extent of testing

Tensile and bending tests

Tolerances on shape
