Product Details:
|
| Thickness: | 51CrV4 1.8159 | Feature: | Alloy Steel |
|---|---|---|---|
| Shape: | Steel Strip | Surface Condition: | 1 Grey/blue Oxide Finish:unpolished;2 Bright Tempered:unpolished; 3 Polished: 4 Polished And Coloured:blue Or Yellow Colour |
| Highlight: | Annealed Alloy Steel Strip,1.8159 Alloy Steel Strip,50crv4 steel equivalent |
||

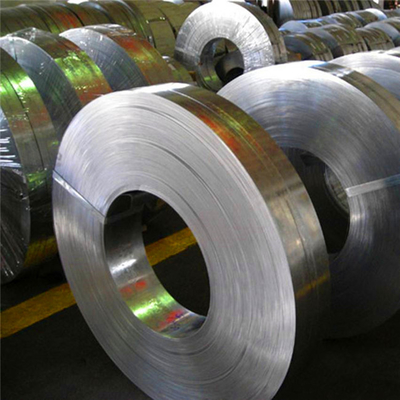

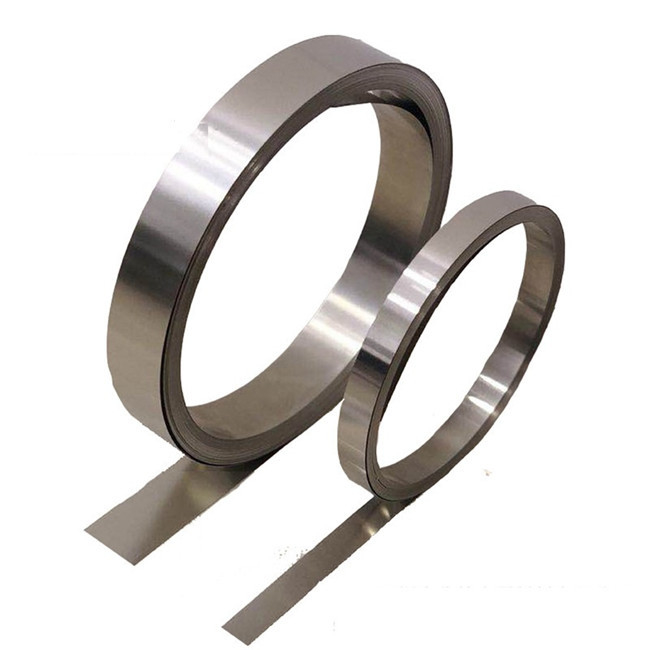

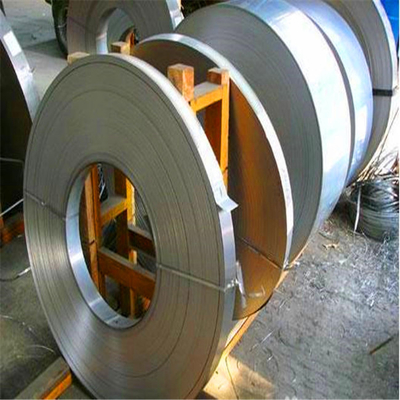

51crv4 1.8159 alloy cold rolled narrow steel strip thicknesses up to 6mm; alloy cold rolled narrow steel strip in the quenched and tempered condition in thicknesses between 0.3 mm and 3.00 mm for springs and for other special applications.
Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.
Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement
51crv4 1.8159 Steel Strip Chemical composition
| C | Si | Mn | P max. | S max. | Cr | Mo max. | V | Ni |
| 0,47 to 0,55 | max. 0,40 | 0,70 to 1,10 | 0,025 | 0,025 | 0,90 to 1,20 | 0,10 | 0,1 to 0,25 | max. 0,40 |
| delivery condition | |||||||
| annealed (+A) or annealed and skin passed (+LC) | cold rolled (+CR) | quenched and tempered (+QT) | |||||
| Proof strength max. Mpa | Tensile strength max. Mpa | Elongation % min. | HV max. | Tensile strength max. Mpa | HV max. | Tensile strength Mpa | HV |
| 550 | 700 | 13 | 220 | - | - | 1 200 to 1 800 | 370 to 550 |
The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:
a) the quantity to be delivered;
b) the designation of the product form (cold rolled narrow strip);
c) the number of the dimensional standard (EN 10140);
d) the dimensions and tolerances on dimensions and shape and, if applicable, letters
denoting relevant special tolerances;
e)the number of this European Standard including the number of the relevant part;
f) steel name or steel number
g) the delivery condition
h) if required, the type of inspection document in accordance with EN 10204.
Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:
-annealed or annealed and skin passed(+A or +LC);
-cold rolled(+CR);
-quenched and tempered(+QT).
NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.
For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge
The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.
The surface finishes of quenched and tempered cold rolled strip are as follows:
1 grey/blue oxide finish:unpolished;
2 brigth tempered:unpolished
3 polished: obtained by fine grinding, abrasive brushing or other processes;

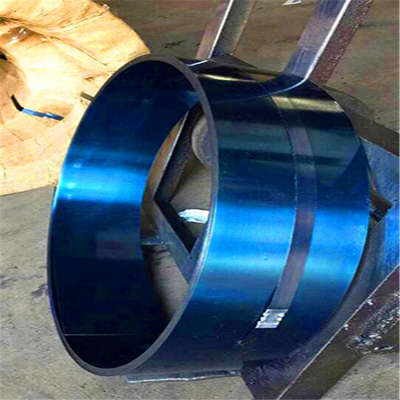

4 polished and coloured:blue or yellow colour obtained by oxidization by heat
treatment.
a suitable frequency of verification of the dimensions of the products;
an adequate intensity of visual examination of the surface quality of the products;
an appropriate frequency and type of test to ensure that the correct grade of steel is used.
Extent of testing
Tensile and bending tests
Tolerances on shape
