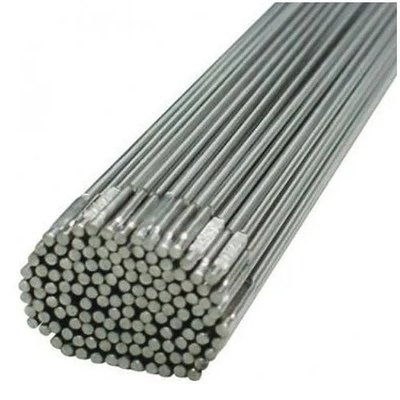

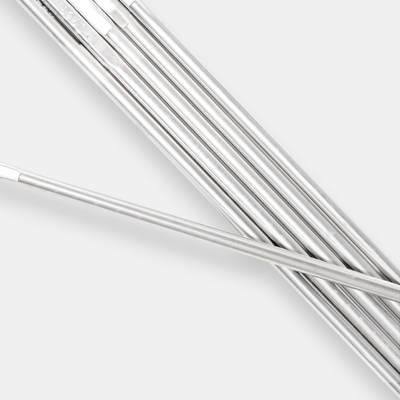

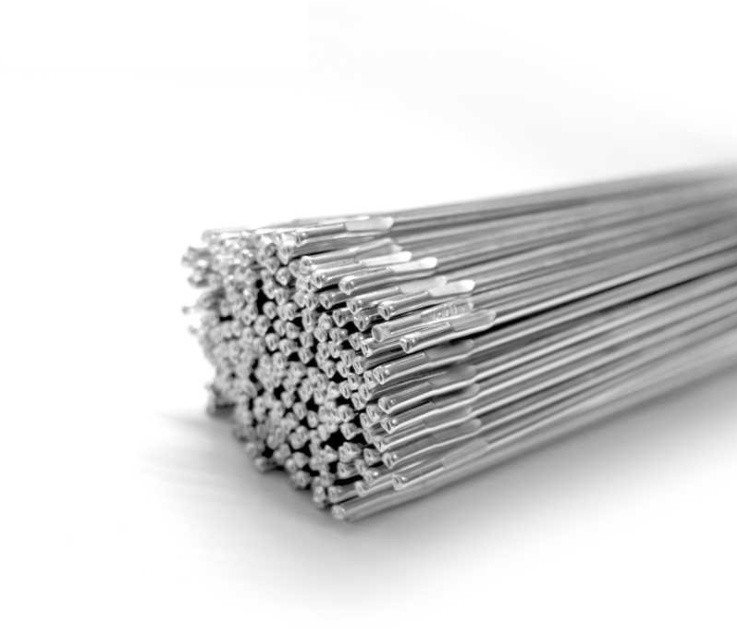

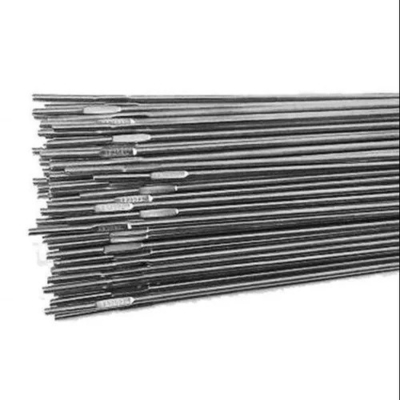

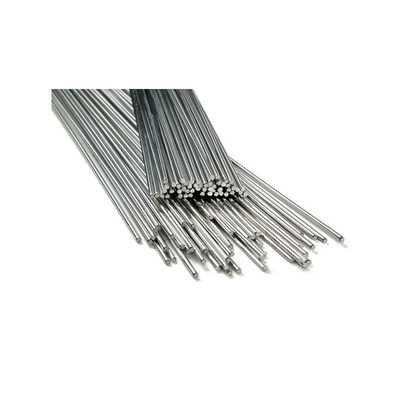

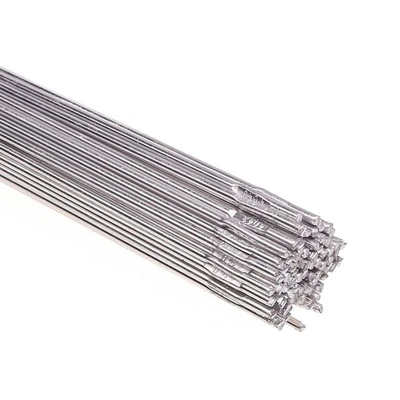

ERNICR-3 N06082 Welding Rod / Wire Bright Finished

ERNICR-3 N06082 Welding Rod / Wire Bright Finished
ERNICR-3 N06082 Welding Rod / Wire Bright Finished ERNICR-3 N06082 Welding Rod / Wire Bright Finished ERNICR-3 N06082 Welding Rod / Wire Bright Finished ERNICR-3 N06082 Welding Rod / Wire Bright Finished ERNICR-3 N06082 Welding Rod / Wire Bright Finished ERNICR-3 N06082 Welding Rod / Wire Bright Finished

Large Image :  ERNICR-3 N06082 Welding Rod / Wire Bright Finished

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO NQA 9001
Model Number: N06082
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

ERNICR-3 N06082 Welding Rod / Wire Bright Finished

Description
Material: Nickel Alloy Feature: For Welding
Form: Rod
High Light:

N06082 Welding Rod

,

Bright Finished N06082 Welding Rod

,

ERNICR-3 Nickel Alloy Welding Wire

ERNICR-3 N06082 WELDING ROD/WIRE



We are one of the leading suppliers, exporter, stockiest of Nickel alloy MIG/TIG welding wires, rods and electrodes. AWS A5.14 Specification for the classification of bare nickel and nickel-alloy bare welding strip electrodes and welding rods. Alloy ErNiCr-3 is used to weld Ni-Fe-Cr alloys Inconel 600 and for dissimilar joints welding between Ni-Cr-Fe alloys and steels or stainless steels and its overlay welding. It can be also used for high-temperature transition joints from -269°C up to 900°C and cryogenic 3% and 5% Ni steels.



Specifications

Weld Process: Mig/Tig (GTAW) and SAW welding
Coils wires 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm
Straight wires 2.0mm,2.4mm,3.0mm,4.0mm
Surface treatment: Bright finish



ERNiCr-3 Classification Comparison

Present Corresponding A 5.11 UNS.No Military ISO 18274
ERNiCr-3 ENiCrFe-3 N06082

EN82&RN82

EN82H&RN82H

S Ni6082



ERNiCr-3 Chemical Composition

Ni, min Cr C Si Ti Fe Cu· Mn S P
67.0 18-22 0.1 0.5 0.75 3.0 0.5 2.5-3.5 0.015 0.03



ERNiCr-3 Mechanical Property

Yield strength, psi Tensile Strength, psi Elongation, %
66,000 114,000 35



Our nickel and nickel alloy welding wires have wide applications because of their high quality and stability. The nickel alloy wires ErNiCr-3 supplied by us are in strict accordance with AWS A5.14 and other equivalent standards. We provide not only high-quality products but also have access to a vast stock of aluminum, stainless steel, titanium and other alloys to American, European and Chinese specifications. We are here and our experienced technical team is waiting to help you with your inquiry, so contact us now!



ERNICR-3 N06082 Welding Rod / Wire Bright Finished 0
