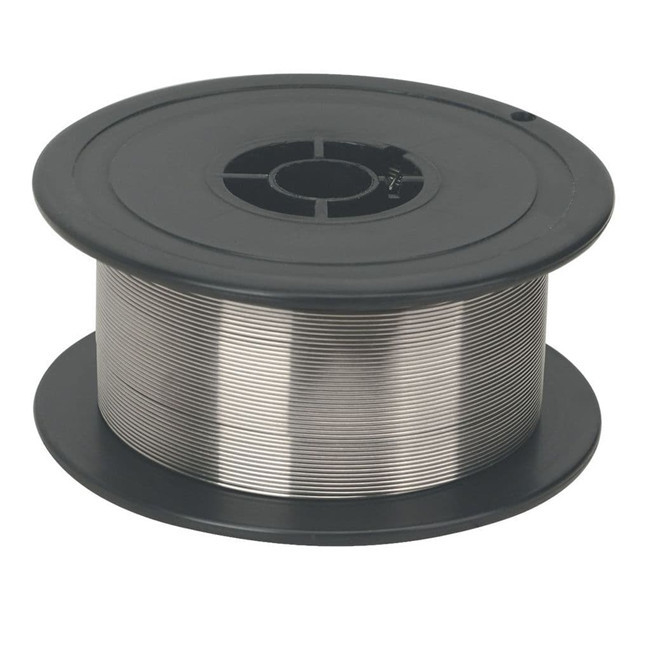

JIS G3522 SWP-B Class Piano Music Wire

JIS G3522 SWP-B Class Piano Music Wire
JIS G3522 SWP-B Class Piano Music Wire

Large Image :  JIS G3522 SWP-B Class Piano Music Wire

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: JIS G3522
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

JIS G3522 SWP-B Class Piano Music Wire

Diameter: 0.05-8mm Form Of Delivery: A Coil (singles, Carriers Or Formers), Spools, Spoolless Cores Or As Straight Lengths.
Type: SWP-B Surface Finish: Bright, Phosphate, Tin. And Others
Standard: JIS G3522 Classification: Piano Music Wire
High Light:

6mm Piano Music Wire


SWP-B Piano Music Wire


JIS G3522 stainless music wire

JIS G3522 SWP-B Class Piano Wire


JIS G3522 SWP-B Piano Wire Chemical Composition

C % Mn% Si% P % max. S % max.
0,70-1,00 0,20-0,70 0,10-0,30 0,025 0,030


JIS G3522 SWP-B Piano Wire Surface Condition

The surface of the wire as-received shall be free of rust, excessive scale, die marks, pits, and scratches detrimental to the end application. Seams shall not exceed 2 % of the wire diameter or 0.15 mm [0.006 in.], whichever is less.


JIS G3522 SWP-B Piano Wire Manufacture

The steel may be made by any commercially accepted steel-making process. The rod to be used in the manufacture of wire furnished to this specification shall be in accordance with Specification A510/A510M.

The finished wire shall be free from detrimental pipe and undue segregation.

The wire shall be cold drawn to produce the desired mechanical properties.

Type 1 wire shall be directly drawn from either as-rolled rods or from air patented rods or wire to the final wire diameter.

Type 2 wire shall be drawn from either patented rod or patented wire to the final wire diameter. Air patenting is not allowed.

Type 2 wire may be substituted for Type 1 wire. Conversely. Type 1 wire may not be substituted for Type 2 wire.


The method of patenting, and in particular the method utilized for controlled cooling, can be designed to optimize the microstructure and mechanical properties of either patented wire rod or patented wire, as well as of wires drawn from either of these. Because patenting is performed in a linear manner rather than in a coiled or serpentine manner, the uniformity of microstructure and mechanical properties along the patented wire or patented wire rod length is improved compared to that existing in either of these prior to palenting.


JIS G3522 SWP-B Piano Wire Introduce

round cold- drawn steel music spring quality wire, uniform in mechanical properties, intended especially for the manufacture of springs subject to high stresses or requiring good fatigue properties.



Piano wire, class B, SWP-B, for spring receiving principally dynamic load


Condition of decarburized layer

SWP-B, detrimental decarburized layer shall not be observed

JIS G3522 SWP-B Piano Wire Surface Finish

Music wire is supplied with many different kinds of finish such as bright, phosphate, tin. and others. Finish desired should be specified on purchase orders.


JIS G3522 SWP-B Piano Wire Decarburization

The maximum affected depth of decarburization shall not exceed 2.0 % of the wire diameter or 0. 15 mm [0.006 in.], whichever is less. The maximum average partial decarburization depth shall not exceed 1.5 % of the wire diameter


JIS G3522 SWP-B Piano Wire Ordering Information

Orders for steel wire under this specification shall contain the following information:

1 Quantity (weight in lbs, or mass in kg)

2 Name (music steel spring wire) and type (Type 1 or Type 2) of material

3 Diameter

4 Finish

5 Packaging

6 ASTM designation and year of issue.


option to specify additional requirements

1 Requirements for certifications, heat, or test reports

2 Special packing, marking, and loading requirements

JIS G3522 SWP-B Piano Wire Packaging and Marking

1 The coil, reel or spool mass, dimensions, and the method of packaging shall be agreed upon between the manufacturer and purchaser.

2 A tag shall be attached securely to each coil of wire with identifying information as agreed upon by the purchaser and manufacturer.

3 Unless otherwise specified in the purchaser's order, packaging, marking, and loading for shipments shall be in accordance with those procedures recommended by Practices A700.


What is SWP B material?
SWP-B steel – quick summary SWP-B is a(n) japanese steel defined in JISG3522-91 standard.


Is piano wire spring steel?
Piano wire, or “music wire”, is a specialized type of wire made for use in piano strings but also in other applications as springs. It is made from tempered high-carbon steel, also known as spring steel, which replaced iron as the material starting in 1834.


What is the hardness of piano wire?
Piano wire is also known as piano wire, belongs to high carbon steel. The hardness range is 41-60 and the allowable temperature is 120°. Piano wire is quenched by the lead bath cold-drawn from a very high strength limit and elastic limit, is widely used small spring material.


How hard is music wire?
LIMITATIONS. While music wire is highly versatile, it is not indestructible. It can endure heavy loads, but it can give way under “shock” loads—that is, sudden, high-impact levels of stress. Also, temperature extremes can affect its ability to perform, so it isn’t recommended in situations of extreme heat or cold.


JIS G3522 SWP-B Class Piano Music Wire 0
