Product Details:
|
| Thickness: | 1 To 10 Mm | Width: | 1 To 25mm |
|---|---|---|---|
| Packaging: | Ribbon Or Tape Wound Or A Vibrated Coil | Condition: | Oiled Or Not Oiled |
| Finish Or Coating: | Bright, Phosphate, Tin. And Other | Grade: | 52SiCrNi5 |
| Number: | 1.7117 | Classification: | Flat Spring Steel Wire |
| High Light: | 15mm Flat Spring Steel Wire,1.7117 Flat Spring Steel Wire,52SiCrNi5 |
||
Grade : 52SiCrNi5
Number: 1.7117
Classification: Alloy special steel
Standard:
EN 10089: 2002 Hot rolled steels for quenched and tempered springs. Technical delivery conditions
| DIN 1.7117 | EN 52SiCrNi5 | EN 1.7117 | GOST 52XHC | GB ZG50CrMo |
| C | Si | Mn | Ni | P | S | Cr | - |
| 0.49 - 0.56 | 1.2 - 1.5 | 0.7 - 1 | 0.5 - 0.7 | max 0.025 | max 0.025 | 0.7 - 1 | Cu+10Sn < 0.6 |
Untempered-carbon spring steel flat wire is commonly supplied in a Number 2 regular bright finish. The manufacturer should be consulted if another finish is required.
Hardened and tempered spring steel flat wire is usually supplied in one of the following recognized finishes:
1 Black-tempered,
2 Scaleless-tempered,
3 Bright-tempered,
4 Tempered and polished,
5 Tempered, polished, and colored (blue or straw), and
Unless otherwise specified, flat wire is coated with oil to minimize scratching and to retard rusting in transit. If the product is not to be oiled, it must be so specified.
Thickness,: 1 to 10mm; Tolerances +/-0.013 to 0.05mm
Width: 5 to 25mm; Tolerances +/- 0.08 to 0.13mm
1. Stable linearity, good formability. Uniform and beautiful surface condition.
2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
3. Professional anti-rust protective packaging. On time delivery, competitive price.
4. Large stock available, no MOQ requirement.
| Brinell hardness (HB): (+S) | 280 |
| Brinell hardness (HB): (+A) | 248 |
| Brinell hardness (HB): (+AC) | 230 |
Number 1 Edge is a prepared edge of a specified contour (round or square) which is produced when a very accurate width is required or when the finish of the edge suitable for electroplating is required, or both.
Number 2 Edge is not applicable to flat wire products.
Number 3 Edge is an approximately square edge produced by slitting.
Number 4 Edge is a rounded edge produced either by edge rolling or resulting from the flat rolling ofa round section. Width tolerance and edge condition are not as exacting as for a No. 1 Edge.
Number 5 Edge is an approximately square edge produced from slit–edge material on which the burr is eliminated by rolling or filing.
Number 6 Edge is a square edge produced by edge rolling when the width tolerance and edge condition are not as exacting as for No. 1 Edge.
Hard-Type Spring Steel Flat Wire
Soft-Type Spring Steel Flat Wire
Soft-Type Annealed Spring Steel Flat Wire
Soft-Type Intermediate Spring Steel Flat Wire
Spheroidize-Type Spring Steel Flat Wire
EN 1.7117 steel is an alloy steel formulated for primary forming into wrought products. 1.7117 is the EN numeric designation for this material. 52SiCrNi5 is the EN chemical designation. It has a very low density and a very low melting temperature among EN wrought alloy steels.
Untempered-Carbon Spring Steel Flat Wire: Umbrella rib wire, metal-band saw steel.
Hardened and Tempered Carbon Spring Steel Flat Wire : Tape line, brush wire, heddle wire.
spring steel flat wire is produced to a range in which the specified or required maximum is over 0.25 % by cast or heat analysis. Two types of carbon spring steel flat wire are produced:
1 Untempered cold-rolled carbon spring steel flat wire, produced to several desirable combinations of properties
2 Hardened and tempered carbon spring steel wire.
Flat wire is generally produced from hot-rolled rods or round wire, by one or more cold-rolling operations, primarily for the purpose of obtaining the size and section desired and for improving surface finish, dimensional accuracy, and varying mechanical properties. Flat wire can also be produced from slitting hot- or cold-rolled flat steel to the desired width. The hot-rolled slit flat steel is subsequently cold reduced. The width to thickness ratio and the specified type of edge generally determine the process that is necessary to produce a specific flat-wire item. The production of good surface quality flat wire is dependent upon scale-free and clean wire, rod, or hot-rolled steel prior to cold-rolling. Scale removal can be accomplished by chemical or mechanical cleaning.
Orders for material to this specification shall include the following information, as necessary, to describe adequately the
desired product:
1 Quantity,
2 Name of material (flat wire identified by type),
3 Analysis or grade, if required
4 Temper of low carbon or type of spring steel
5 Edge
6 Finish or coating
7 Dimensions,

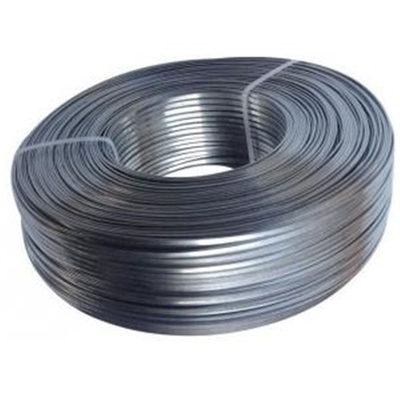

8 Coil type and size requirements
9 Packaging
10 Condition (oiled or not oiled)
11 ASTM designation and date of issue,
12 Copper-bearing steel, if required,
13 Application (part identification or description),
14 Case or heat analysis (request, if desired), and
15 Exceptions to the specification, if required.
Flat wire start as a round wire and then the round wire is rolled (flattened) or die drawn to meet custom requirements through a series of engineered operations.spring steel flat wire has a wide range of applications in many industries including but not limited to:Regulator springs, Industrial springs, Car seat border springs, Conveyor belt fasteners, Key rings, Saw blade wire, Frames, window mechanisms. High carbon steel springs are very popular due to their econimcal, strong, and durable nature. The Fushun is equipped with the knowledge and expertise to facilitate in your selection of the perfect high carbon steel springs for your project, customizing the springs to your exact specifications.
Flat wire is prepared for shipment in a number of ways. The material may be bare, paper or burlap wrapped, boxed, skidded or palletized, skidded and shrouded, palletized and shrouded, barrelled, or a combination thereof. The purchaser should specify the method desired. When coils are ordered it should be specified whether a ribbon or tape wound or a vibrated coil is desired. Since coil diameters and weights vary by the manufacturers, the manufacturer should be consulted for specific capability and limitations. When coil weight is specified for low-carbon steel flat wire or for untempered-carbon spring steel flat wire, it is common practice to ship not more than 10 % of the total weight of an item in short coils, which are those weighing between 25 and 75 % of the maximum coil weight.
