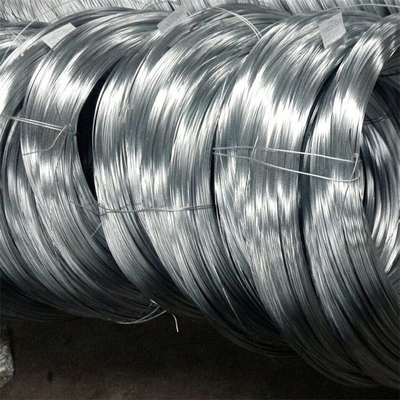

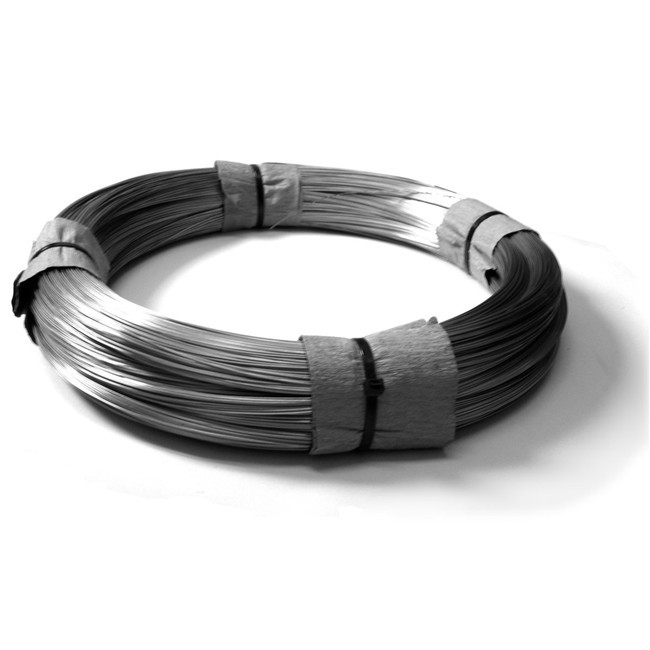

302, 1.4319, SUS302, Stainless Spring Steel Wire

Certification
China Hunan Fushun Metal Co., Ltd. certification
China Hunan Fushun Metal Co., Ltd. certification
I'm Online Chat Now

302, 1.4319, SUS302, Stainless Spring Steel Wire

302, 1.4319, SUS302, Stainless Spring Steel Wire
302, 1.4319, SUS302, Stainless Spring Steel Wire 302, 1.4319, SUS302, Stainless Spring Steel Wire

Large Image :  302, 1.4319, SUS302, Stainless Spring Steel Wire

Product Details:
Place of Origin: China
Brand Name: Fushun
Certification: ISO9001:2008
Model Number: AISI 302
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: nylon/pallet/case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000tons/year

302, 1.4319, SUS302, Stainless Spring Steel Wire

Description
Diameter: 0.01-20mm Form Of Delivery: A Coil (singles, Carriers Or Formers), Spools, Spoolless Cores Or As Straight Lengths.
Delivery Condition: +AT Solution Annealed Then Cold Drawn Surface Condition: Uncoated, Polished Finish, Nickel Coated Etc
Grade: AISI 302 Form: Wires Coil
Classification: Stainless Spring Steel Wire
High Light:

annealed Stainless steel wire rods

,

20mm Stainless steel wire rods

,

AISI 302 Stainless Steel

AISI 302 Stainless Spring Steel Wire for Mechanical Springs



Grade AISI 302 / EN 1.4310 is an austenitic steel with a high content of chromium and nickel. A typical application for this stainless steel grade is the industrial production of springs. The material is perfectly suited for welding and cold forming and owns good polishing qualities.



Supplying Size:
Diameter:0.01-20mm



Our Advantage
1. Stable linearity, good formability. Uniform and beautiful surface condition.
2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
3. Professional anti-rust protective packaging. On time delivery, competitive price.
4. Large stock available, no MOQ requirement.



AISI 302 Stainless Steel Wire Chemical composition

C Si Max Mn max P max. S max. Cr Nl
0.05 MAX 1.00 MAX 2.00 MAX 0.045 0.030 17,00- 19,00 8.00 - 10.00



AISI 302 Stainless Steel Wire Form of delivery

The wire shall be supplied in coils, on spools, on spoolless cores or carriers. Several coils may be assembled on a carrier. Unless otherwise specified the form of delivery shall be at the manufacturer's discretion. He shall however inform the purchaser about the form of delivery.



AISI 302 Stainless Steel Wire Surface finish

The wire may be coated or not. The specific coating and finish for stainless steel spring wire shall be agreed upon at the time of enquiry and order- e.g. uncoated, polished finish, nickel coated.



AISI 302 Stainless Steel Wire Information to be supplied by the purchaser

The purchaser shall clearly state in his enquiry or order the product and following information:

a) the desired quantity;

b) the number of this European Standard: JIS G4314;

c) the steel grade and for grade 1.4310 also the tensile strength level;d) the nominal wire diameter;

e) the surface finish

f) the form of delivery

g) the type of inspection document to be supplied;

h) any particular agreement made.



stainless steels are usually used in the cold drawn condition in the form of wire of circular cross-section up to 10,00 mm in diameter, for the production of springs and spring parts that are exposed to corrosive effects and sometimes to slightly increased temperatures.

1.4571,1.4539,1.4028 are also used for springs,although to much lesser extent. In these cases the mechanical properties(tensile strength, etc.)should be agreed between purchaser and supplier. Similarly, diameters between 10,00 mm and 15,00 mm may be ordered against this standard; in this case the parties should agree upon the required mechanical characteristics.



AISI 302 Stainless Steel Wire Manufacturing process

Unless otherwise agreed in the order, the manufacturing process used in the making of the stainless steel wire is left to the discretion of the manufacturer. The starting condition (+AT:solution annealed)of the wire (rod) is specified in EN 10088-3.



AISI 302 is an austenitic stainless steel that offers a high resistance to corrosion due to the inclusion of Molybdenum within it’s chemical composite. In particular it’s resilience to chloride substances makes it suitable for use within salt water environments. Typically used within the Marine, brewing, pretochemical, pharmaceuticals and Food processing industries, common applications of AISI 302 include but are not limited to; Pressure Vessels, Valves, Flanges and fittings, heat exchangers, condensers, filters etc.
